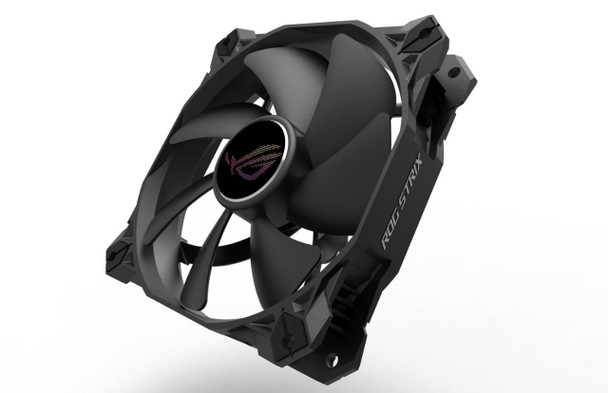

Asus 90DA0010-B09000 Rog Strix Xf 120 Universal 90DA0010-B09000

ROG STRIX XF 120 WHISPER-QUIET CASE/RADIATOR FAN
OPTIMAL BLEND OF AIRFLOW AND STATIC PRESSURE

ROG Strix XF 120 fan provides exceptional cooling performance in the crucial middle area of the P/Q curve. This means optimized performance with a minimized acoustic profile for both static pressure and airflow cooling applications, including as a PC case, radiator or CPU cooler fan.

MAGNETIC-LEVITATION TECHNOLOGY
The fan bearing in ROG Strix XF 120 features 360� MagLev technology to prevent slanting and friction. This technology delivers exceptional cooling performance, low noise and a long lifespan of up to 400,000 hours.

Fan-Blade Grooves
Precision-engineered grooves on the fan blades direct and focus air to flow smoothly along the blades for reduced flow separation. This increases fan performance and reduces vortex noise, improving overall acoustics.

Direct-Flow Frame
The angle and curvature of the frame struts are carefully designed to direct and channel airflow in a unidirectional, highly focused stream. This design minimizes turbulence and the focused airflow enhances static pressure.

DYNAMIC BALANCE PRE-CALIBRATION
The balance of each fan is manually tuned to minimize inefficiency and ensure optimal performance.

PRECISE, FLEXIBLE PWM SPEED CONTROL
An extensive operating range of 250 � 1800 rpm offers the precision and flexibility to maximize cooling performance across various workloads, and the fan automatically turns off when set to 0% PWM duty cycle for an ultralow noise profile when handling lighter workloads.

Design



Number of fan blades



7


Product colour



Black


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Gross Weight (Package, kg)



0.2 kg


Performance



Fan diameter



12 cm


Maximum air pressure



3.07 mmH2O


Mean time between failures (MTBF)



400000 Hour


Minimum airflow (imperial)



62.5 cfm


Noise level (high speed)



22.5 dB


Quantity per pack



1 pc(s)


Rotational speed (max)



1800 RPM


Rotational speed (min)



250 RPM


Suitable location



Universal


Type



Fan


Product dimensions



Net Weight (Product, kg)



0.15 kg


Product Depth



12 cm


Product Height



2.5 cm


Product Width



12 cm


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
