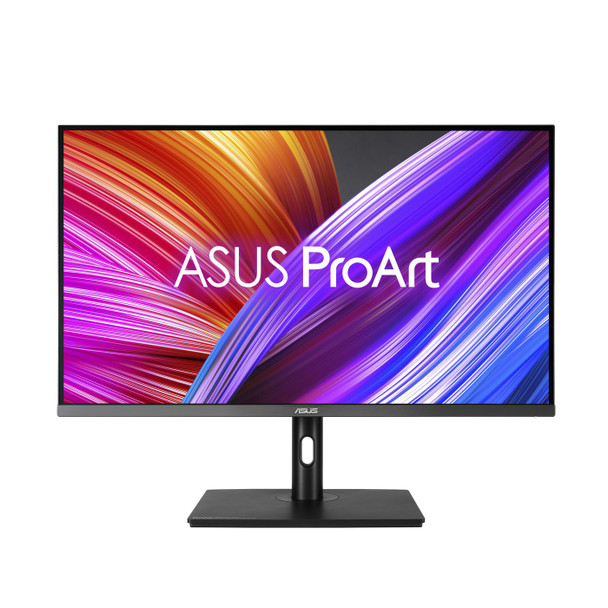

Asus 90LM03H3-B02370 Proart Pa32Ucr-K 81.3 Cm 90LM03H3-B02370

Bright ideas come to life in HDR
ASUS ProArt Display PA32UCR-K is a 32-inch 4K HDR monitor designed for discerning content creators, including videographers, cinematographers and colorists. Peak brightness of 1,000 nits and mini-LED backlighting, enabling 576 zones of local dimming control and support for multiple HDR formats, With quantum dot technology, support for the DCI-P3, Rec. 709, Rec. 2020 and Adobe RGB color spaces, together with a rich selection of connectivity, ProArt Display PA32UCR-K delivers an exceptional image that takes the viewing experience to the next level.

Empowering content creators

Game Developers
Take advantage of ProArt Preset to quick check different color space and ProArt Palette delivers flexible color adjustment.

Cinematographers
The 32-inch mini-LED backlit 4K panel offers higher luminance and deeper black hues for exceptional color contrast and accurate reproduction of HDR content.

Colorists
Factory pre-calibration ensures industry-leading color fidelity, and a wide color gamut and Delta E < 1 color difference ensures outstanding color accuracy.

Impeccably detailed visuals
Mini-LED backlight technology uses smaller LEDs to provide up to three times the number of LEDs, compared to a conventional panel of a similar size. The densely packed mini LEDs enable increased granularity and brightness. Plus, individual backlight control across an astounding 576 zones ensures higher luminance and deep dark colors to deliver unmatched contrast and accurate reproduction of HDR content.

Deeper blacks, brighter whites
A peak brightness of 1000 nits allows for outstanding contrast between the deepest blacks and gleaming whites, resulting in a rich and lifelike viewing experience.

Create in ultra-vivid HDR

Exclusive ASUS Smart HDR technology enables ProArt Display PA32UCR-K to support HLG and HDR-10 multiple HDR formats

HLG allows users to view and create material for broadcast and satellite TV platforms such as BBC iPlayer, Japan NHK TV, and DirecTV.

HDR-10 support ensures compatibility with existing streaming video services and a growing list of HDR-enabled games.

ASUS ProArt Displays support multiple HDR-10 curves, including PQ Hard Clip, PQ Optimized and PQ Basic, which can cover all content creation needs.

PQ Hard Clip
Preserves PQ curve till displaying maximum luminance with accuracy. Any luminance higher than display maximum will be mapped to display maximum.

PQ Optimized
Reproduce accurate gradations corresponding to maximum brightness of the monitor. Deliver the optimized HDR performance of this display.

PQ Basic
Present general HDR performance.

HDR Preview enables a direct camera-to-monitor connection to view captured HDR content with its full tonal range. It also works within most video editing software platforms, providing accurate simulations of the final output for an easier, more streamlined editing experience.

Transform viewing experiences
Wide-viewing angle IPS with 1,000 nits peak brightness, supporting Quantum Dot technology provides an entire spectrum of colors to play with. Support 98% DCI-P3, 99.5% Adobe RGB, 100% sRGB, 100% Rec. 709 and 87% Rec.2020 color spaces for video editing and post-production.

Industry?leading color fidelity
Factory pre-calibration using a new three-scale process guarantees industry-leading color fidelity. The display also undergoes stringent testing using ASUS advanced grayscale tracking technology to ensure smoother color gradations, better uniformity and exceptional color accuracy with a Delta E (?E) < 1 color difference value for the sRGB and Adobe RGB color spaces. Each grayscale level is also carefully measured and set to ensure compliance with the precise DICOM standard.

Truest color, flexible calibration

ASUS ProArt Calibration technology saves all color parameter profiles on the ProArt monitor�s internal scaler IC chip, instead of on the PC. The saved profiles can be easily activated via the hotkey on the monitor.
The monitor can be calibrated and the look-up table subsequently rewritten, allowing users to connect it to devices with different operating systems or applications without needing to adjust settings. Signal distortion between the IC and the LCD optical spectrum is also reduced.

Integrated ASUS ProArt Calibration 2.0 enables swift and easy adjustments to maintain the color accuracy of ASUS ProArt monitors. It offers SDR and HDR calibration with adjustable brightness, color gamut, color temperature and other parameters to ensure consistent and precise colors.

Additionally, ProArt Calibration 2.0 can re-calibrate each color gamut mode and write back into each ProArt Preset mode

ProArt displays are compatible with most major calibrators, including those from X-Rite, Datacolor and Klein. They also work seamlessly with Calman and Light Illusion ColourSpace CMS professional hardware calibration software* for fast, easy calibration.
*Calman and Light Illusion ColourSpace CMS software are not included with ProArt PA32UCR-K.
*3rd Party software support will be ready in Q2 2022

Streamlined, efficient workflows
HDMI(v2.0) x 3, DisplayPort 1.2, Full Function USB-C and a USB hub enable convenient connections to a desktop, Blu-ray player, control panel or additional display with zero hassle. The integrated USB-C port supports data transfers, DisplayPort signal and also support 80W power delivery.

Picture-by-Picture (PbP) mode
View two to four different settings simultaneously by placing multiple input sources onscreen side-by-side; and configure each individual window's color settings with sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1 or User Mode 2.

Picture-in-Picture (PiP) mode
Easily place your second input source in a window in one corner of the display.

A comfortable viewing position is always easy to achieve with ASUS ProArt Display. With an ergonomically-designed stand with tilt, swivel, pivot and height adjustments provide comfortable viewing and usage experiences. The ability to pivot the screen clockwise or counterclockwise 90 degrees for use in portrait mode comes in handy when working with long documents, coding or website browsing. Furthermore, the VESA wall-mountable to save on desktop space.

ASUS Flicker-Free technology ensures a more comfortable viewing experience by reducing on-screen flicker to minimize eye strain, headaches and eye fatigue that can occur when spending long hours in front of a display. Exclusive ASUS Ultra-Low Blue Light technology protects your eyes from harmful blue light emissions with four blue-light filter settings that are easily accessed through the on-screen menu via the hotkey.

Design



Certification



T�V Flicker-free T�V Low Blue Light VESA DisplayHDR 1000 Calman Ready


Product colour



Black


Display



Anti-glare screen



Yes


Backlight type



LED


Colour gamut



100 %


Contrast ratio (dynamic)



100000000:1


Contrast ratio (typical)



1000:1


Digital horizontal frequency



40 - 144 kHz


Digital vertical frequency



30 - 60 Hz


Display brightness (typical)



400 cd/m�


Display diagonal



32 "


Display number of colours



1.073 billion colours


Display resolution



3840 x 2160 Pixels


Display technology



LED


HD type



4K Ultra HD


High Dynamic Range (HDR) supported



Yes


High Dynamic Range (HDR) technology



High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)


Maximum refresh rate



60 Hz


Native aspect ratio



16:9


Panel type



IPS


Pixel pitch



0.1845 x 0.1845 mm


Response time



5 Millisecond


RGB colour space



sRGB


Screen shape



Flat


sRGB coverage (typical)



100 %


Touchscreen



No


Viewing angle, horizontal



178 �


Viewing angle, vertical



178 �


Ergonomics



Cable lock slot



Yes


Height adjustment



13 cm


Height adjustment



Yes


Panel mounting interface



100 x 100


Pivot



Yes


Pivot angle



-90 - 90 �


Swivel angle range



-30 - 30 �


Swivelling



Yes


Tilt adjustment



Yes


Tilt angle range



-5 - 23 �


VESA mounting



Yes


Logistics data



Harmonized System (HS) code



85285210


Multimedia



Built-in camera



No


Built-in speaker(s)



Yes


Number of speakers



2


RMS rated power



4 Watt


Package dimensions



Gross Weight (Package, kg)



15.99 kg


Packaging content



Cables included



AC, DisplayPort, HDMI, USB Type-C


Quick start guide



Yes


Stand included



Yes


Performance



AMD FreeSync



No


Flicker-free technology



Yes


Low Blue Light technology



Yes


NVIDIA G-SYNC



No


Ports & interfaces



Built-in USB hub



Yes


Charging port type



USB Type-C


DisplayPort version



1.2


DisplayPorts quantity



1


HDCP



Yes


HDMI



Yes


HDMI ports quantity



3


HDMI version



2.0


Headphone out



Yes


USB hub version



3.2 Gen 1 (3.1 Gen 1)


USB Type-A downstream ports quantity



3


USB Type-C downstream ports quantity



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Energy consumption (HDR) per 1000 hours



70 kWh


Energy consumption (SDR) per 1000 hours



42 kWh


Energy efficiency class (HDR)



G


Energy efficiency class (SDR)



G


Power consumption (PowerSave)



0.5 Watt


Power consumption (typical)



46 Watt


Product dimensions



Net Weight (Product, kg)



12.3 kg


Vendor information



Brand Name


Asus


Warranty



1 Year(s)


Weight & dimensions



Depth (with stand)



24.5 cm


Depth (without stand)



6.868 cm


Height (with stand)



60.415 cm


Height (without stand)



42.587 cm


Weight (with stand)



12.3 kg


Weight (without stand)



7.7 kg


Width (with stand)



72.688 cm


Width (without stand)



72.688 cm
