Asus 90MB19F0-M0EAY0 Proart B660-Creator D4 Intel 90MB19F0-M0EAY0

Your Powerhouse for Creativity

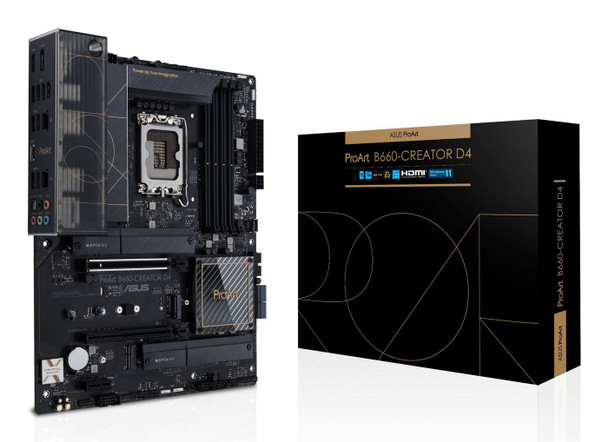

ProArt B660-Creator D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 12th Gen Intel� Core� processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C� front-panel connector with Quick Charge 4+, and DisplayPort� via USB-C.

Comprehensive Connectivity
An array of powerful I/O ports � including 2.5 Gb and 1 Gb Ethernet ports and three M.2 slots � enables quick data transfers and extensive storage options.

USB-C DisplayPort (DP Alt Mode)
This USB Type-C� port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort� 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.

*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.

USB 3.2 Gen 2x2 Type-C� Front-Panel Connector with Quick Charge 4+
A USB 3.2 Gen 2x2 connector boosts Type-C data transfers with speeds of up to 20 Gbps. The connector also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

Thunderbolt� 4 Support
ProArt B660-Creator D4 features Thunderbolt� 4 support via an on-board header. The ASUS ThunderboltEX 4 add-on card is certified by Intel and can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, the card has a daisy-chain function for multiscreen connection and supports one display with up to 8K resolution . It can also provide up to 100 watts of power to fast-charge devices.

Ultrafast M.2 Transfer Speeds
Three M.2 slots support PCIe 4.0 or 3.0 drives and provide NVMe� SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive, eliminating the need for screws.

Dual Ethernet ports provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.

2.5 Gb Ethernet
The 2.5 Gb Ethernet port provides faster data transfers and smooth high-res video streaming.

Intel� 1Gb Ethernet
The Intel I219-V Ethernet chip reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

M.2 Slot (Key E)
ProArt B660-Creator D4 features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth and Intel CNVi (integrated WiFi/BT) modules*.
*The WiFi/BT module is purchased separately.

Next-Gen Performance
With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4 easily handles the demands of the latest 12th Gen Intel Core processors. It features an intelligent VRM design that�s rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.

Robust Power Delivery

Teamed power stages
12+1 power stages rated for 50 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 12th Gen Intel Core processors demand.

Digi+ Power Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

ProCool power connector
The ASUS ProCool socket is built to exacting specifications to ensure flush contact with PSU power lines, enabling lower impedance and better heat dissipation.

Chokes & capacitors
Premium alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

PCIe 5.0 Ready
The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as improved signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous PCIe versions.

DDR4 Memory
ProArt B660-Creator D4 supports up to 128 GB of DDR4 memory across four slots. ASUS-exclusive OptiMem II technology improves trace layout to significantly reduce signal distance and crosstalk, enhancing memory stability and compatibility while giving memory kits higher clock speed margins.

Optimized Cooling Design
Maintaining system stability under heavy loads is of paramount importance, so ProArt B660-Creator D4 features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.

Heatsinks

VRM heatsinks
Two VRM heatsinks are placed above the MOSFETs and chokes to further increase surface area for heat dissipation.
M.2 heatsinks
Two M.2 heatsinks cover three M.2 slots to keep M.2 SSDs at the optimal operating temperature for consistent performance and reliability.
Chipset heatsink
A dedicated chipset heatsink draws heat away to help ensure that temperatures stay within an optimal range.

Headers

Cooler by Design
ProArt B660-Creator D4 features these comprehensive cooling options:Multiple temperature sources
Each header can be set to monitor and react to multiple user-configurable thermal sensors for workload-based cooling. All settings can be easily managed using the Fan Xpert 4 in Amoury Crate or via the UEFI.
4-pin PWM/DC fan
Every onboard header supports auto-detection of PWM or DC fans.
AIO pump
A dedicated PWM/DC header provides power to self-contained water-cooling setups.
Smart fan protection
A dedicated integrated circuit protects each fan header from excessive heat and voltages.

Perfect for Content Creation
ProArt exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that enable a smoother workflow.

ASUS Control Center Express software offers advanced security management functions to protect the system and confidential data.

Industry-Leading Security

USB port management
Enable or disable USB ports or set them to Read Only to prevent data leaks.

Software blacklist
For added security, a software blacklist is available to help identify high-risk applications.

Registry editor enabled/disabled
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.

ProArt Creator Hub
A user-friendly interface helps enhance workflows via a central system that allows monitoring and control of all connected ProArt products, including motherboards and displays.

1. Fan mode
Select the preferred fan setting to quickly configure the system�s cooling performance.

2. Task grouping
Applications that are frequently used together can be arranged into groups and launched with a single click.

CreationFirst
The CreationFirst optimization utility allows users to prioritize applications to allocate more bandwidth for essential apps and tasks.
CreationFirst mode puts content-creation applications at the front of the queue, optimizing network traffic for more efficient workflows.
Similarly, Adaptive Intelligence mode analyzes usage patterns and identifies applications that are currently in use, applying foreground acceleration to ensure smoother online experiences when multitasking.

Two-Way AI Noise Cancelation
As working from home becomes the new normal, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so users can hear and be heard with crystal clarity.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.

Trusted Stability
ProArt B660-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility ? all to ensure that it empowers creativity for years to come.

BIOS



BIOS memory size



128 Mbit


Clear CMOS jumper



Yes


Expansion slots



Number of M.2 (M) slots



3


PCI Express x1 (Gen 3.x) slots



1


PCI Express x16 (Gen 3.x) slots



1


PCI Express x16 (Gen 5.x) slots



1


Features



Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel B660


Motherboard chipset family



Intel


Motherboard form factor



ATX


Power source type



ATX


Windows operating systems supported



Windows 10 x64, Windows 11 x64


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Front panel connector



Yes


Number of chassis fan connectors



4


Number of COM connectors



1


Number of SATA III connectors



4


RGB LED pin header



Yes


Thunderbolt headers



1


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Logistics data



Harmonized System (HS) code



84733020


Memory



Maximum internal memory



128 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speeds



2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4600, 4800, 5000, 5333


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



2.5 Gigabit Ethernet, Gigabit Ethernet


Ethernet LAN



Yes


Wi-Fi



No


Other features



Weight



1.415 kg


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Cables included



SATA


Processor



Compatible processor series



Intel� Celeron�, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9, Intel� Pentium� Gold


Processor manufacturer



Intel


Processor socket



LGA 1700


Supported processor sockets



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



24.4 cm


Product Height



6.8 cm


Product Width



30.5 cm


Rear panel I/O ports



Digital audio optical out



1


DisplayPort version



1.4


DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



2


HDMI version



2.1


Headphone outputs



5


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


USB connector type



USB Type-A, USB Type-C


Storage controllers



Number of HDDs supported



4


Number of storage drives supported



7


RAID levels



0, 1, 5, 10


RAID support



Yes


Supported storage drive interfaces



M.2, PCI Express 3.0, PCI Express 4.0, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
