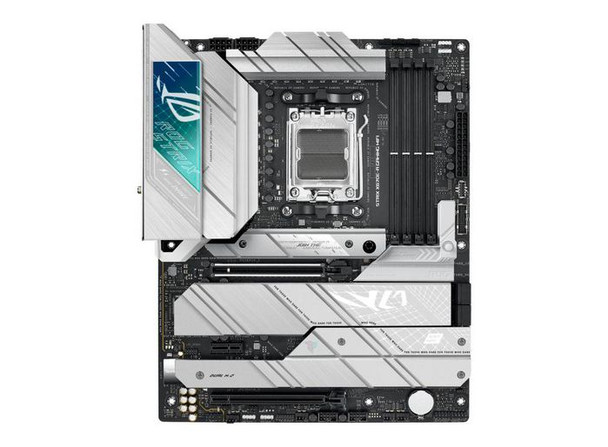

Asus 90MB1BM0-M0EAY0 Rog Strix X670E-A Gaming Wifi 90MB1BM0-M0EAY0

ROG STRIX X670E-A GAMING WIFI
Suit up for the next gen with the stylish ROG Strix X670E-A Gaming WiFi. Its black PCB and white accents neatly contrast silver-colored heatsinks that emphasize premium power delivery for AMD Ryzen� 7000 Series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven in alongside, adding uniquely tailored performance and AM5 essentials to your gaming build.

ALL-ROUND PERFORMANCE
Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-A, giving you everything necessary to cruise and flex with AMD Ryzen� 7000 in your build.

PCIE 5.0
Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.

LEADING CONNECTIVITY
The ROG Strix X670E-A Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel 2.5G Ethernet
Onboard Intel� 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

PLAY IN STYLE
A striking silver and white aesthetic with complementary RGB lighting delivers a build that stands out in every way. Pair the Strix X670E-A with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

UNDENIABLY ROG STRIX
The ROG Strix X670E-A Gaming WiFi will turn heads with a striking silver-white finish that contrasts with a bold Aura RGB-illuminated grid design. Parallel strakes and curved text on the VRM, M.2, and PCH heatsinks tie the whole aesthetic together with a clean, modern look.

SOFTWARE UTILITIES
ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.

AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen� 7000 Series processor and ROG Strix X670E-A Gaming WiFi to experience advanced performance. With up to 16 �Zen 4� cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen� 7000 Series keeps you ahead of the game.1

You�ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe� 5.0. AMD Ryzen� 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO� technology.2

BIOS



BIOS memory size



256 Mbit


BIOS type



UEFI AMI


Clear CMOS button



Yes


Expansion slots



Number of M.2 (M) slots



4


PCI Express x1 (Gen 3.x) slots



1


PCI Express x16 (Gen 3.x) slots



1


PCI Express x16 (Gen 5.x) slots



1


Features



Audio chip



Realtek ALC4080


Audio output channels



7.1 channels


Component for



PC


Cooling type



Active


Motherboard chipset



AMD X670


Motherboard chipset family



AMD


Motherboard form factor



ATX


Windows operating systems supported



Windows 10 x64, Windows 11 x64


Graphics



Parallel processing technology support



Not supported


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



5


Number of SATA II connectors



1


Number of SATA III connectors



4


RGB LED pin header



Yes


Thunderbolt headers



1


USB 2.0 connectors



4


USB 3.2 Gen 1 (3.1 Gen 1) connectors



2


Memory



ECC



Yes


Maximum internal memory



128 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speeds



4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Bluetooth



Yes


Bluetooth version



5.2


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Intel I225-V


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)


Package dimensions



Depth (package,cm)



26.5 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



71 cm


Width (package,cm)



28 cm


Packaging content



Cables included



SATA


Processor



Compatible processor series



AMD Ryzen� 7


Processor manufacturer



AMD


Processor socket



Socket AM5


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



24.4 cm


Product Width



30.5 cm


Rear panel I/O ports



Digital audio optical out



1


DisplayPort version



1.4


DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.1


Headphone outputs



1


Line-in



Yes


Microphone in



Yes


S/PDIF out port



Yes


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



1


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



7


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


USB 3.2 Gen 2x2 Type-C ports quantity



1


Storage controllers



RAID levels



0, 1, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
