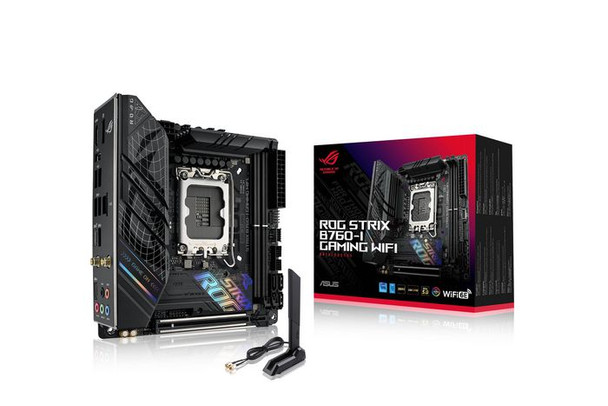

Asus 90MB1D90-M0EAY0 Rog Strix B760-I Gaming Wifi 90MB1D90-M0EAY0

BIOS



BIOS memory size



128 Mbit


BIOS type



UEFI AMI


Expansion slots



Number of M.2 (M) slots



2


PCI Express x16 (Gen 5.x) slots



1


Features



Audio chip



SupremeFX S1220A


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel B760


Motherboard chipset family



Intel


Motherboard form factor



mini ITX


Windows operating systems supported



Windows 10 x64, Windows 11 x64


Graphics



Parallel processing technology support



Not supported


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



1


Number of SATA III connectors



4


RGB LED pin header



Yes


USB 2.0 connectors



1


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Memory



Maximum internal memory



64 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speed (max)



7600 MHz


Supported memory clock speeds



4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Bluetooth



Yes


Bluetooth version



5.3


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)


Other features



Weight



644 g


Package dimensions



Depth (package,cm)



9.4 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



18.5 cm


Width (package,cm)



22.6 cm


Packaging content



Cables included



SATA


User guide



Yes


Processor



Compatible processor series



Intel� Celeron�, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9, Intel� Pentium� Gold


Maximum number of SMP processors



1


Processor manufacturer



Intel


Processor socket



LGA 1700


Supported processor sockets



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



17 cm


Product Height



5 cm


Product Width



17 cm


Rear panel I/O ports



DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Headphone outputs



1


Line-in



Yes


Microphone in



Yes


USB 2.0 ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB 3.2 Gen 2x2 Type-C ports quantity



1


Storage controllers



Number of HDDs supported



4


Number of storage drives supported



6


RAID levels



0, 1, 5, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
