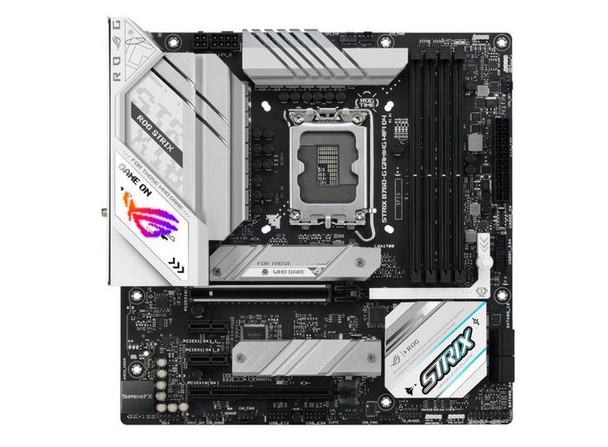

Asus 90MB1DE0-M1EAY0 ASUS ROG STRIX B760-G GAMING 90MB1DE0-M1EAY0

ROG STRIX B760-G D4 GAMING WIFI
Go big and stay compact. The ROG Strix B760-G D4 pairs perfectly with the Prime AP201 and the latest crop of compact chassis driving the m-ATX renaissance. Stout heatsinks and amped power delivery ensure ample headroom to propel Intel� 13th Gen Core processors, while a PCIe 5.0 SafeSlot welcomes high-performance graphics cards for gaming at 4K and beyond. Blisteringly-fast USB Type-C� and WiFi 6 connectivity further emphasize readiness for things to come. And the black, white, and silver colorway and customizable lighting combine to put endless build themes at your disposal.

PCIE� SLOT Q-RELEASE
A physical button unlocks the first PCIe slot�s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it�s time to upgrade to a new GPU or other compatible device.

CLEAR CMOS
The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

ALL-ROUND PERFORMANCE
With a powerful VRM and thick stacked heatsinks, the ROG Strix B760-G D4 is ready for any chip in the Intel 13th Gen lineup. Connected devices can run at incredible speeds as well, thanks to immense PCIe bandwidth.

POWER ARCHITECTURE
16 + 1 power stages, each rated to 60A, deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

LEADING CONNECTIVITY
Supersmooth networking, extensive USB bandwidth, and immersive audio all come together to give the ROG Strix B760-G D4 a robust connectivity package.

The top x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.

PLAY IN STYLE
With colorful accents, Aura Sync lighting, and a sleek black PCB, the ROG Strix B760-G D4 gives you a bold start to your rig, especially when complemented by similarly vibrant products in the ROG ecosystem.

UNDENIABLY ROG STRIX
Keeping true to its roots, the Strix B760-G D4 is proudly decorated with allusions to games of yesteryear. Scattered decals create a techno-retro fusion backdrop that is punctuated with vibrant highlights and a signature illuminated ROG logo on the I/O shroud.

SOFTWARE UTILITIES
Take command of your system through a bevy of ROG-exclusive tools that let you maximize performance and customize your experience

TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.

BIOS



BIOS memory size



256 Mbit


BIOS type



UEFI AMI


Clear CMOS button



Yes


Expansion slots



Number of M.2 (M) slots



2


PCI Express x1 (Gen 4.x) slots



2


PCI Express x16 (Gen 4.x) slots



1


PCI Express x16 (Gen 5.x) slots



1


Features



Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel B760


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


Windows operating systems supported



Windows 10 x64, Windows 11


Graphics



Parallel processing technology support



Not supported


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



2


Number of SATA III connectors



4


Peripheral (Molex) power connectors (4-pin)



1


RGB LED pin header



Yes


S/PDIF out connector



Yes


Thunderbolt headers



1


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Memory



Maximum internal memory



128 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speed (max)



5333 MHz


Supported memory clock speeds



2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000, 5066, 5333


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Bluetooth



Yes


Bluetooth version



5.3


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Cables included



SATA


Processor



Compatible processor series



Intel� Celeron�, Intel� Pentium� Gold, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9


Processor manufacturer



Intel


Processor socket



LGA 1700


Supported processor sockets



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



24.4 cm


Product Width



24.4 cm


Rear panel I/O ports



DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Headphone outputs



1


Line-in



Yes


Microphone in



Yes


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



1


USB 3.2 Gen 2x2 Type-C ports quantity



1


WiFi-AP antenna jack



1


Storage controllers



Number of HDDs supported



4


Number of storage drives supported



6


RAID levels



0, 1, 5, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
