Asus
Asus 90MB1E10-M0EAY0 Rog Strix Z790-H Gaming Wifi 90MB1E10-M0EAY0
- UPC:
- 4711387038192
- MPN:
- 90MB1E10-M0EAY0
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description

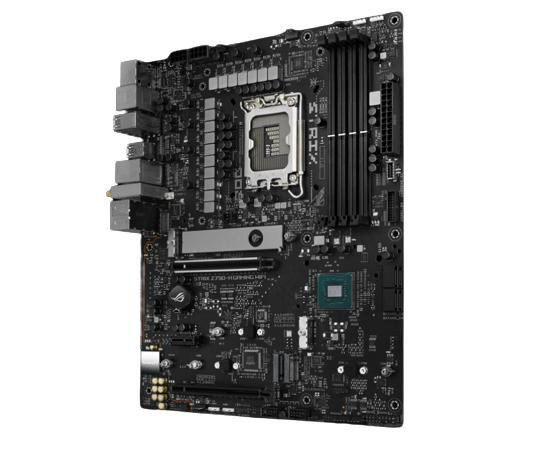

ROG STRIX Z790-H GAMING WIFI
Strike stealthily with the powerfully potent ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel� 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2x2 fully flesh out connectivity.
ALL-ROUND PERFORMANCE
Every aspect of the Strix Z790-H is intelligently optimized so the processor, memory, and connected devices can run in lockstep in order to achieve breakneck speeds.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
LEADING CONNECTIVITY
Lightning-fast networking keeps the Strix Z790-H in sync with the outside world for uninterrupted gaming and creation. Furthering immersion is SupremeFX audio, which delivers crystal clear sound.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel� 2.5 Gbps Ethernet
PLAY IN STYLE
Black PCB and heatsinks compliment most hardware, and customizable RGB lighting furthers the flexibility. Pair the Strix Z790-H with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
Diagonal slats, brushed aluminum, and bold RGB accents have become hallmarks of the ROG aesthetic, and the Strix Z790-H bears all of them with pride.
SOFTWARE UTILITIES
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
BIOS
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Expansion slots
Number of M.2 (M) slots
4
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Features
Audio chip
Realtek ALC S1220A
Audio output channels
7.1 channels
Compatible operating systems
Windows� 11, Windows� 10 64-bit
Component for
PC
Motherboard chipset
Intel Z790
Motherboard chipset family
Intel
Motherboard form factor
ATX
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Graphics
On-board graphics card
No
Internal I/O
12V power connector
Yes
ATX Power connector (24-pin)
Yes
Audio connector
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Number of chassis fan connectors
5
Number of SATA connectors
4
Power fan connector
Yes
RGB LED pin header
Yes
Thunderbolt headers
1
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Memory
Maximum internal memory
128 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Non-ECC
Yes
Number of memory slots
4
Supported memory clock speeds
4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Network
Bluetooth
Yes
Bluetooth version
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Package dimensions
Gross Weight (Package, kg)
1.3 kg
Packaging content
Cables included
SATA
Processor
Compatible processor series
Intel� Celeron�, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9, Intel� Pentium� Gold
Maximum number of SMP processors
1
Processor manufacturer
Intel
Processor socket
LGA 1700
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
24.4 cm
Product Width
30.5 cm
Rear panel I/O ports
COM ports quantity
1
Digital audio optical out
5
DisplayPort version
1.4
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.0
S/PDIF out port
Yes
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB connector type
USB Type-A
WiFi-AP antenna jack
1
Storage controllers
Number of HDDs supported
4
Number of storage drives supported
4
RAID levels
0, 1, 5, 10
RAID support
Yes
Supported storage drive interfaces
M.2, SATA
Supported storage drive types
HDD & SSD
Vendor information
Brand Name
Asus
Warranty
1 Year(s)
View AllClose
Strike stealthily with the powerfully potent ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel� 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2x2 fully flesh out connectivity.
ALL-ROUND PERFORMANCE
Every aspect of the Strix Z790-H is intelligently optimized so the processor, memory, and connected devices can run in lockstep in order to achieve breakneck speeds.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
LEADING CONNECTIVITY
Lightning-fast networking keeps the Strix Z790-H in sync with the outside world for uninterrupted gaming and creation. Furthering immersion is SupremeFX audio, which delivers crystal clear sound.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel� 2.5 Gbps Ethernet
PLAY IN STYLE
Black PCB and heatsinks compliment most hardware, and customizable RGB lighting furthers the flexibility. Pair the Strix Z790-H with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
Diagonal slats, brushed aluminum, and bold RGB accents have become hallmarks of the ROG aesthetic, and the Strix Z790-H bears all of them with pride.
SOFTWARE UTILITIES
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
BIOS
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Expansion slots
Number of M.2 (M) slots
4
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Features
Audio chip
Realtek ALC S1220A
Audio output channels
7.1 channels
Compatible operating systems
Windows� 11, Windows� 10 64-bit
Component for
PC
Motherboard chipset
Intel Z790
Motherboard chipset family
Intel
Motherboard form factor
ATX
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Graphics
On-board graphics card
No
Internal I/O
12V power connector
Yes
ATX Power connector (24-pin)
Yes
Audio connector
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Number of chassis fan connectors
5
Number of SATA connectors
4
Power fan connector
Yes
RGB LED pin header
Yes
Thunderbolt headers
1
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Memory
Maximum internal memory
128 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Non-ECC
Yes
Number of memory slots
4
Supported memory clock speeds
4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Network
Bluetooth
Yes
Bluetooth version
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Package dimensions
Gross Weight (Package, kg)
1.3 kg
Packaging content
Cables included
SATA
Processor
Compatible processor series
Intel� Celeron�, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9, Intel� Pentium� Gold
Maximum number of SMP processors
1
Processor manufacturer
Intel
Processor socket
LGA 1700
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
24.4 cm
Product Width
30.5 cm
Rear panel I/O ports
COM ports quantity
1
Digital audio optical out
5
DisplayPort version
1.4
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.0
S/PDIF out port
Yes
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB connector type
USB Type-A
WiFi-AP antenna jack
1
Storage controllers
Number of HDDs supported
4
Number of storage drives supported
4
RAID levels
0, 1, 5, 10
RAID support
Yes
Supported storage drive interfaces
M.2, SATA
Supported storage drive types
HDD & SSD
Vendor information
Brand Name
Asus
Warranty
1 Year(s)
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
