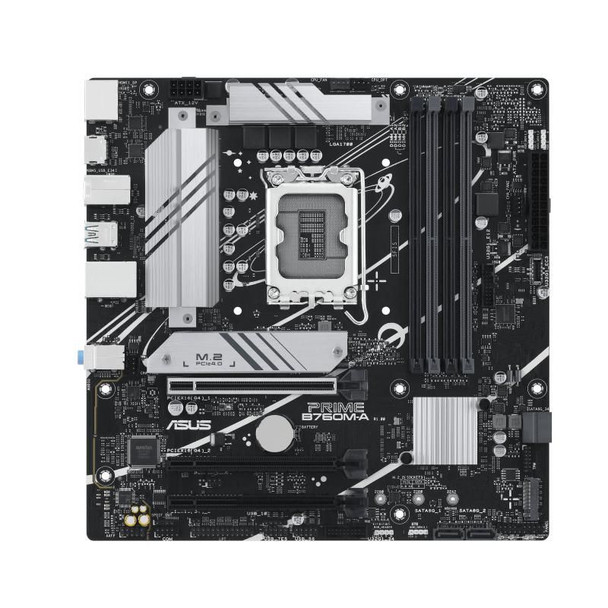

Asus 90MB1EK0-M0EAYC Prime B760M-A-Csm Intel B760 90MB1EK0-M0EAYC

B760M-A-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel� Core� Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

BIOS



BIOS memory size



128 Mbit


BIOS type



UEFI AMI


Clear CMOS button



Yes


Expansion slots



Number of M.2 (M) slots



2


PCI Express x16 (Gen 4.x) slots



3


Features



Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel B760


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


Windows operating systems supported



Windows 10 x64, Windows 11


Graphics



Parallel processing technology support



Not supported


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Front panel connector



Yes


Number of chassis fan connectors



2


Number of COM connectors



1


Number of SATA III connectors



4


RGB LED pin header



Yes


S/PDIF out connector



Yes


TPM connector



Yes


USB 2.0 connectors



3


USB 3.2 Gen 1 (3.1 Gen 1) connectors



3


Memory



Maximum internal memory



128 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speed (max)



7200 MHz


Supported memory clock speeds



7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


Wi-Fi



Yes


Package dimensions



Depth (package,cm)



26.3 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



5.2 cm


Width (package,cm)



27 cm


Packaging content



Cables included



SATA


Processor



Compatible processor series



Intel� Celeron�, Intel� Pentium� Gold, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9


Processor manufacturer



Intel


Processor socket



LGA 1700


Supported processor sockets



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



24.4 cm


Product Height



4 cm


Product Width



24.4 cm


Rear panel I/O ports



DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



2


Headphone outputs



1


Line-in



Yes


Microphone in



Yes


PS/2 ports quantity



1


USB 2.0 ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



2


WiFi-AP antenna jack



1


Storage controllers



Number of HDDs supported



4


Number of storage drives supported



6


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
