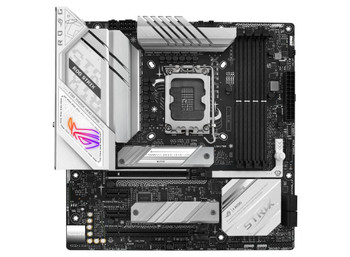

Asus 90MB1EQ0-M1EAY0 ASUS ROG STRIX B760-G GAMING 90MB1EQ0-M1EAY0

ROG STRIX B760-G GAMING WIFI
Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.

PCIE� SLOT Q-RELEASE
A physical button unlocks the first PCIe slot�s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it�s time to upgrade to a new GPU or other compatible device.

ALL-ROUND PERFORMANCE
A finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.

TEAMED POWER ARCHITECTURE
12 + 1 power stages each rated to 60A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

8+4 PIN PROCOOL POWER CONNECTORS
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

LEADING CONNECTIVITY
The Strix B760-G is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.

PLAY IN STYLE
The Strix B760-G features a black PCB, bare heatsinks, and white accents, allowing it to pair with almost any component or peripheral. Customizable RGB lighting furthers its flexibility for a fully customized gaming setup that reflects your personal style.

BIOS



BIOS memory size



256 Mbit


BIOS type



UEFI AMI


Expansion slots



Number of M.2 (M) slots



2


PCI Express x1 (Gen 4.x) slots



2


PCI Express x16 (Gen 4.x) slots



1


PCI Express x16 (Gen 5.x) slots



1


Features



Audio chip



SupremeFX S1220A


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel B760


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


Windows operating systems supported



Windows 10 x64, Windows 11


Graphics



Parallel processing technology support



Not supported


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



2


Number of SATA III connectors



4


Peripheral (Molex) power connectors (4-pin)



1


RGB LED pin header



Yes


S/PDIF out connector



Yes


Thunderbolt headers



1


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Memory



Maximum internal memory



192 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speed (max)



7800 MHz


Supported memory clock speeds



7800, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Bluetooth



Yes


Bluetooth version



5.3


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



Wi-Fi 6E (802.11ax)


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Cables included



SATA


Processor



Compatible processor series



Intel� Celeron�, Intel� Pentium� Gold, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9


Processor manufacturer



Intel


Processor socket



LGA 1700


Supported processor sockets



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



24.4 cm


Product Width



24.4 cm


Rear panel I/O ports



DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Headphone outputs



1


Line-in



Yes


Microphone in



Yes


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



1


USB 3.2 Gen 2x2 Type-C ports quantity



1


WiFi-AP antenna jack



1


Storage controllers



Number of HDDs supported



4


Number of storage drives supported



6


RAID levels



0, 1, 5, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
