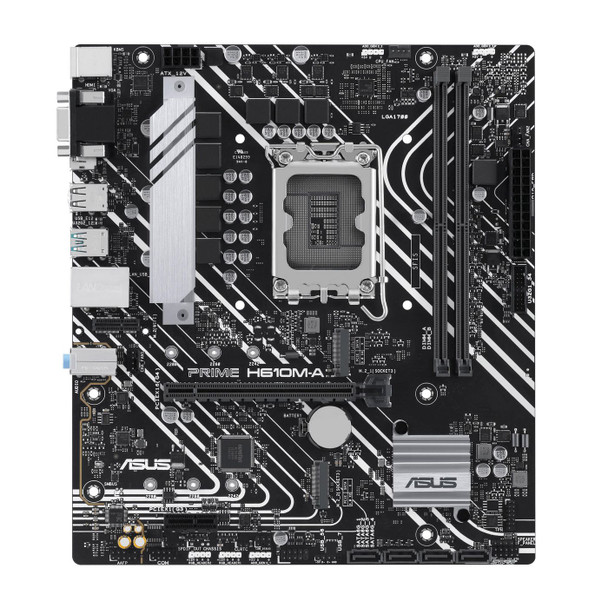

Asus 90MB1G20-M0EAYC Prime H610M-A-Csm Intel H610 90MB1G20-M0EAYC

BIOS



BIOS memory size



128 Mbit


BIOS type



UEFI AMI


Expansion slots



Number of M.2 (M) slots



2


PCI Express x1 (Gen 3.x) slots



1


PCI Express x16 (Gen 4.x) slots



1


Features



Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel H610


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


Windows operating systems supported



Windows 10 x64, Windows 11 x64


Graphics



Parallel processing technology support



Not supported


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



2


Number of COM connectors



1


Number of SATA III connectors



4


S/PDIF out connector



Yes


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Memory



Maximum internal memory



96 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



4800, 5000, 5200, 5400, 5600


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Fast Ethernet, Gigabit Ethernet


Ethernet LAN



Yes


Wi-Fi



No


Other features



Weight



554 g


Package dimensions



Depth (package,cm)



26.3 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



5.15 cm


Width (package,cm)



27 cm


Processor



Compatible processor series



Intel� Celeron�, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9, Intel� Pentium� Gold


Processor manufacturer



Intel


Processor socket



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



21.6 cm


Product Height



3.9 cm


Product Width



24.4 cm


Rear panel I/O ports



DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Headphone outputs



1


Microphone in



Yes


PS/2 ports quantity



2


USB 2.0 ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



2


VGA (D-Sub) ports quantity



1


Storage controllers



Number of HDDs supported



4


Number of storage drives supported



6


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
