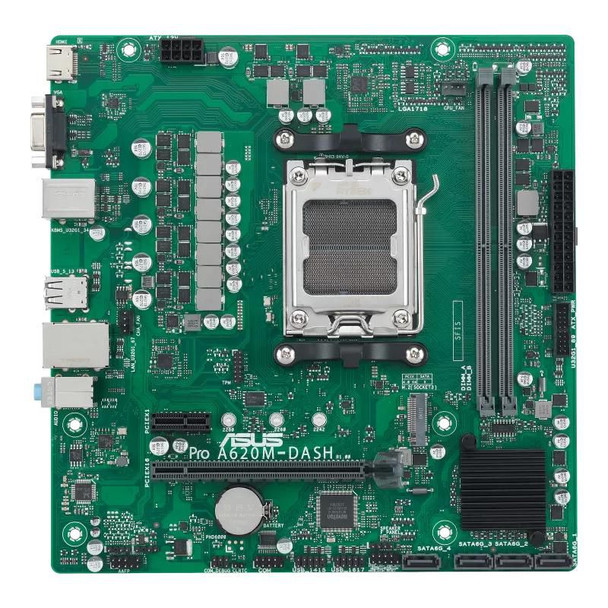

Asus 90MB1GD0-M0EAYC Pro A620M-Dash-Csm Amd A620 90MB1GD0-M0EAYC

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express � a US$60

DDR5 Support
This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.

PCIe 4.0 M.2 Support
This business motherboard offers one M.2 slot, which support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

Enhances system security from bottom to top
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

ASUS Self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.

Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

DASH support Ready
DASH(Desktop and mobile Architecture for System Hardware) is a suite of specifications developed by the DMTF that delivers open standards-based Web services management for desktop and mobile client systems. DASH is a comprehensive framework that provides the next generation of standards for secure out-of-band and remote management of desktop and mobile systems in multi-vendor, distributed enterprise environments. DASH enables robust, secure out-of-band management.
* Pro A620M-DASH-CSM is hardware ready for capable of DASH software. DASH software is not attached with product.

ASUS SERVICEABILITY
Facilitate the assembly process and enable efficient troubleshooting

BIOS



BIOS memory size



256 Mbit


BIOS type



UEFI AMI


Expansion slots



Number of M.2 (M) slots



1


PCI Express x1 (Gen 3.x) slots



1


PCI Express x16 (Gen 4.x) slots



1


Features



Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



AMD A620


Motherboard chipset family



AMD


Motherboard form factor



micro ATX


Windows operating systems supported



Windows 10 x64, Windows 11


Graphics



Parallel processing technology support



Not supported


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


Audio connector



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



1


Number of COM connectors



1


Number of SATA III connectors



4


S/PDIF out connector



Yes


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Memory



Maximum internal memory



96 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speed (max)



7200 MHz


Supported memory clock speeds



4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek 8111EPV


Wi-Fi



No


Package dimensions



Depth (package,cm)



26.5 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



7.1 cm


Width (package,cm)



28 cm


Packaging content



Cables included



SATA


Processor



Processor manufacturer



AMD


Processor socket



Socket AM5


Supported processor sockets



Socket AM5


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



22.1 cm


Product Width



22.6 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Headphone outputs



1


Microphone in



Yes


PS/2 ports quantity



1


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


VGA (D-Sub) ports quantity



1


Storage controllers



Number of HDDs supported



4


Number of storage drives supported



5


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
