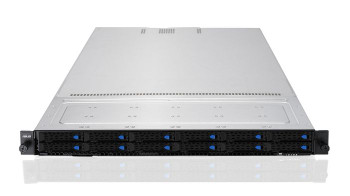

Asus 90SF01E2-M00800 Rs700A-E11-Rs4U Socket Sp3 90SF01E2-M00800

AMD EPYC 7003 Series Processors
The latest AMD EPYC� 7003 series processors are the new standard for modern data centers. AMD was first with X86 multi-chip-module server CPUs and continues to innovate with the 3rd Gen EPYC processors, including up to 32MB of L3 cache per core and synchronized fabric and memory-clock speeds designed for improved performance.

PCIe 4.0 Ready
PCI Express� (PCIe�) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS700A-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking � enabling flexible scalability for demanding or increasing workloads.

GPU and FPGA Support
ASUS RS700A-E11 servers feature a powerful GPU architecture that supports one dual-slot GPU such as NVIDIA A100 in one 1U system to enable easy scale-up in order to meet the demands of AI and high-performance computing (HPC), and to securely run workloads in virtualized environments.

ASUS AMD EPYC 7003-based series are Xilinx Alveo-qualified servers to provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.
* FPGA Xilinx verification is available on request.

Optimal CPU Architecture
The new AMD EPYC 7003 processors excel at providing full features and functionality for both dual-socket and single-socket platforms, but RS700A-E11-RS4U features optional architecture to enable secure and CPU-performance efficiency.

This architecture extends the full bandwidth to either dual- or single-CPU configurations, enabling more computing capability and much-improved overall power efficiency for compute-intensive workloads. This architecture allows customers to take full advantage of bandwidth capabilities of the dual-CPU architecture with a single CPU, while offering the flexibility to upgrade later with the addition of a second CPU.
* Features, specification and design vary by models and configuration.

Modular design
ASUS RS700A-E11 servers offer a flexible, modular design to enable easy scale-up of configurations to meet increasing data-center workloads.

The system-switchable design enables PCI Express� (PCIe�) lanes to be direction to M.2, PCIe 4.0 slots or NVMe drives as required, maximizing performance and capabilities.

Scalable Storage Solution
ASUS RS700A-E11 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security. Up to 12 all-flash NVMe drives on front panel enable extensive storage and high-throughput performance.

Cooling Solutions
Data centers typically demand high-performance processors, GPUs or memory in dense configurations to run HPC or AI workloads. ASUS RS700A-E11 servers feature either air or liquid-cooled solutions, with Asetek�s Direct-to-Chip (D2C) liquid-cooling technology achieving lower power-usage effectiveness (PUE) and optimized TCO for data centers.

D2C Ingredient Coolers
Drop-in replacements for air heat sinks that transfer heat out of the server with liquid.

InRackCDU� for liquid-cooled data centers
Rack level D2C solution for liquid-cooled data centers.

Enhanced Security
ASUS RS700A-E11 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all RS700A-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
* Both PFR and TPM are options, available on request.

OCP 3.0
ASUS RS700A-E11 servers feature the latest OCP NIC 3.0 card with PCIe 4.0 bandwidth for a faster time-to-market network solution, delivering the speeds of up to 200 Gbps for high bandwidth and low latency. It also features a tool-less, hot-swappable design to simplify installation and serviceability.

Server-management Solution

ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish� API.

ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Design



Chassis type



Rack (2U)


Product colour



Silver


Graphics



Discrete graphics memory type



GDDR6


Logistics data



Harmonized System (HS) code



84714100


Memory



Maximum internal memory



4 TB


Number of DIMM slots



32


Supported DIMM module capacities



16GB, 32GB, 64GB, 128GB, 256MB


Supported memory types



DDR4-SDRAM


Operational conditions



Operating temperature (T-T)



10 - 35 �C


Storage relative humidity (H-H)



20 - 90 %


Storage temperature (T-T)



-40 - 60 �C


Package dimensions



Gross Weight (Package, kg)



24.51 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


VGA (D-Sub) ports quantity



2


Power



80 PLUS certification



80 PLUS Platinum


AC input frequency



50 - 60 Hz


AC input voltage



220 - 240 V


Input current



4.72 A


Power supply



1600 Watt


Processor



Built-in processor



Yes


Number of processors supported



1


Processor socket



Socket SP3


Product dimensions



Net Weight (Product, kg)



18.85 kg


Product Depth



44.9 cm


Product Height



4.38 cm


Product Width



84.25 cm


Storage



Number of 2.5" bays



2


Number of 3.5" bays



4


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
