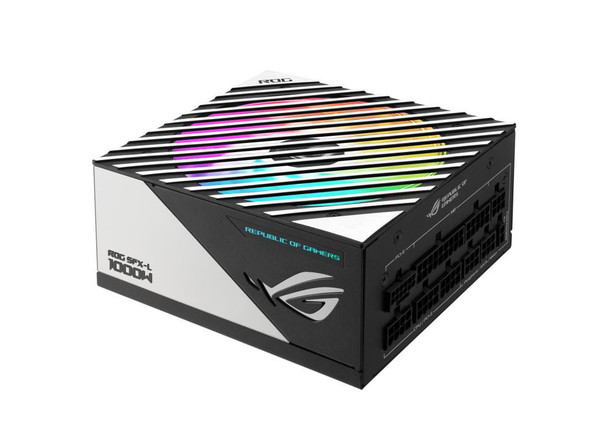

Asus 90YE00N1-B0NA00 Rog Loki Sfx-L 1000W Platinum 90YE00N1-B0NA00

ROG Loki 1000W Platinum
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 1000W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.

ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.

ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.

* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you�ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

Design



Fan diameter



12 cm


Illumination



Yes


Number of fans



1 fan(s)


Product colour



Black, Silver


Package dimensions



Depth (package,cm)



19 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



10 cm


Width (package,cm)



28.5 cm


Performance



80 PLUS certification



80 PLUS Platinum


Certification



OPP/OVP/UVP/SCP/OCP/OTP


Power supply unit (PSU) form factor



SFX


Purpose



PC


Silent mode



Yes


Supported motherboard form factors



ATX


Ports & interfaces



CPU power connector (4+4 pin)



Yes


Motherboard power connector



24-pin ATX


Number of SATA power connectors



6


PCI Express power connectors (16-pin)



1


PCI Express power connectors (8-pin)



3


Peripheral (Molex) power connectors (4-pin)



4


Power



AC input voltage



100 - 240 V


Combined power (+12V)



1000 Watt


Combined power (+3.3V)



110 Watt


Combined power (+5V)



110 Watt


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



9.6 Watt


Max output current (+12V)



83.3 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.8 A


Total power



1000 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



12.5 cm


Product Height



6.35 cm


Product Width



12.5 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
