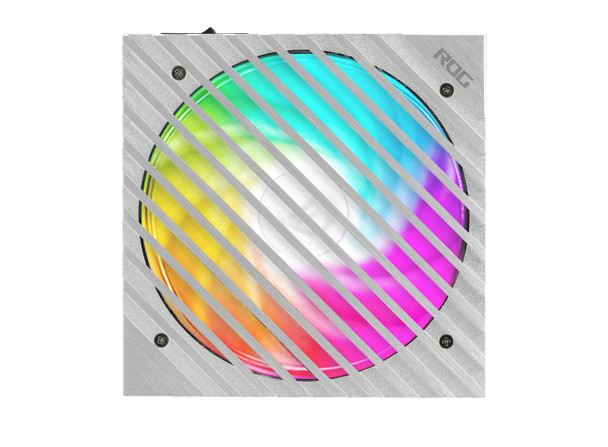

Asus 90YE00N2-B0NA00 Rog Loki Sfx-L 850W Platinum 90YE00N2-B0NA00

The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 850W Platinum White Edition brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.

COOLING

ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, we've scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise.

Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.

Lambda A Certification
Quietly deviant
On average, ROG Loki emits less than 25 dB of noise � earning a coveted Cybenetics Lambda A certification.

ENGINEERING

80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.

EXPERIENCE

ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.

* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you�ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

10-Year Warranty
A decade of power
We're so confident about the reliability of the ROG Loki SFX-L 850W Platinum White Edition that we back it with a 10-year worldwide warranty.
*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.

Design



Cooling type



Active


Fan diameter



12 cm


Illumination



Yes


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



White


Package dimensions



Depth (package,cm)



19 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



10 cm


Width (package,cm)



28.5 cm


Performance



80 PLUS certification



80 PLUS Platinum


Bearing technology



Ball bearing


Power supply unit (PSU) form factor



SFX-L


Purpose



PC


Supported motherboard form factors



ATX


Ports & interfaces



Cabling type



Modular


CPU power cable length



55 cm


CPU power connector (4+4 pin)



Yes


Motherboard power cable length



45 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



6


PCI Express power cable length



45 cm


PCI Express power connectors (16-pin)



1


PCI Express power connectors (8-pin)



3


Peripheral (Molex) power cable length



600


Peripheral (Molex) power connectors (4-pin)



4


SATA power cable length



600


Power



AC input voltage



100 - 240 V


Combined power (-12V)



9.6 Watt


Combined power (+12V)



850 Watt


Combined power (+3.3V)



110 Watt


Combined power (+5V)



110 Watt


Combined power (+5Vsb)



12.5 Watt


Max output current (-12V)



0.8 A


Max output current (+12V)



70.8 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



2.5 A


Power protection features



Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage


Total power



850 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



12.5 cm


Product Height



6.35 cm


Product Width



12.5 cm


Technical details



Sustainability certificates



RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
