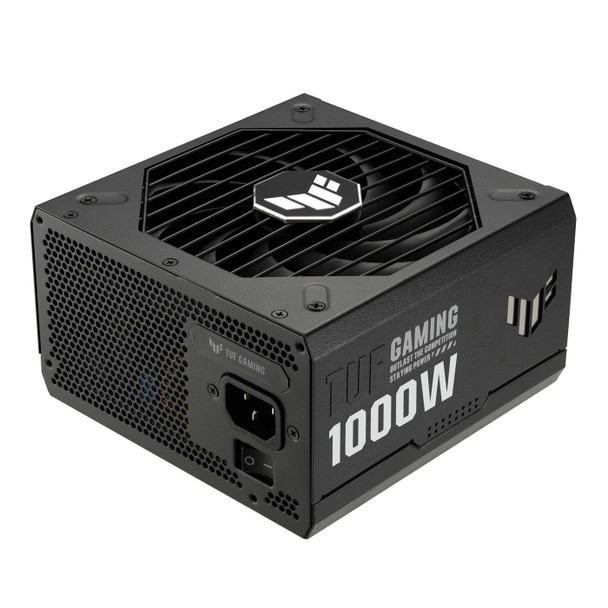

Asus 90YE00S1-B0NA00 Tuf Gaming 1000W Gold Power 90YE00S1-B0NA00

Built For The Long Haul
The ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.​

Durability

TUF Components
Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence.​

Dual Ball Fan Bearings
2x longer lifespan
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.

ENGINEERING

80 Plus Gold Certification
Heart of gold
The TUF Gaming 1000W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.​

ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.​

Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

EXPERIENCE

10-year Warranty
A decade of power​
We're so confident about the reliability of the TUF Gaming 1000W Gold that we back it with a 10-year worldwide warranty.​

Fully Modular Etched Cables
Supple ply
The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.

Design



Cooling type



Active


Fan diameter



13.5 cm


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Package dimensions



Depth (package,cm)



20 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



10.8 cm


Width (package,cm)



31 cm


Packaging content



Cable tie(s) included



Yes


Cables included



AC, CPU, PCIe, Peripheral (Molex), SATA


Performance



80 PLUS certification



80 PLUS Gold


ATX version



3.0


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



ATX power connector (20+4 pin)



Yes


Cabling type



Modular


CPU power cable length



65 cm


CPU power connector (4+4 pin)



Yes


Motherboard power cable length



61 cm


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



5


PCI Express power cable length



67.5 cm


PCI Express power connectors (16-pin)



1


PCI Express power connectors (8-pin)



4


Peripheral (Molex) power cable length



150, 400


Peripheral (Molex) power connectors (4-pin)



4


SATA power cable length



120, 400


Power



AC input voltage



100 - 240 V


Combined power (-12V)



9.6 Watt


Combined power (+12V)



1000 Watt


Combined power (+3.3V)



130 Watt


Combined power (+5V)



130 Watt


Combined power (+5Vsb)



15 Watt


Efficiency



92 %


Max output current (-12V)



0.8 A


Max output current (+12V)



83.3 A


Max output current (+3.3V)



25 A


Max output current (+5V)



25 A


Max output current (+5Vsb)



3 A


Power protection features



Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage


Total power



1000 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



15 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Sustainability certificates



RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
