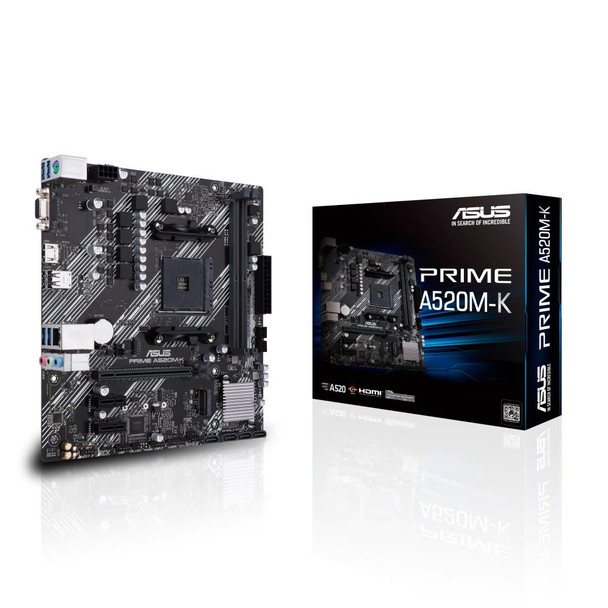

Asus PRIME A520M-K Socket Am4/A520/Ddr4/S-Ata 600/Micro Atx PRIME A520M-K

ASUS AM4 PRIME A520M-K M-ATX
SKU: 119291
Product Group:Motherboards
Manufacturer:ASUS
SKU:119291
Product Name:ASUS PRIME A520M-K (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
Web Address:www.asus.com
Model Number:PRIME A520M-K
EAN:4718017826921
UPC:192876826928
Package Type:Retail
Warranty:3 Years
BIOS:256 Mb Flash ROM, UEFI AMI BIOS
Chipset:AMD A520
RAM Technology:DDR4 (Dual Channel)
RAM Slots:2 x 288-pin
RAM Speeds:Up to DDR4 4600 (O.C.)
Max. Memory Support:64GB
PCI Express 3.0 x16:1
PCI Express 3.0 x1:2
S-ATA 6Gb/s Port(s):4
RAID:Raid 0/1/5/10
M.2 Socket(s):1
On-Board LAN:1 x Realtek RTL8111H 1Gb Ethernet
On-Board Audio:Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
On-Board Video:AMD processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port:1
Back USB 2.0 Port(s):2
Back USB 3.2 Port(s) Type-A Gen 1:4
Back VGA Port(s):1
Back HDMI Port(s):1
Back LAN Port(s):1
Back Audio Jack(s):3
24-pin ATX Power:1
8-pin ATX Power:1
USB 2.0 Header(s):2
USB 3.2 Header(s) Gen 1:1
COM Port Header(s):1
Front Panel Audio Connector:1
TPM Header(s):1
S/PDIF Out Header(s):1
Form Factor:Micro ATX
Product Width:221mm
Product Length:226mm
Package Width:26cm
Package Length:27cm
Package Height:5cm
Gross Weight:0.89Kg
Special Features:ASUS DIGI+ VRM
ASUS LANGuard
ASUS Overvoltage Protection
ASUS SafeSlot Core
ASUS Stainless-Steel Back I/O

Package Contents:Motherboard
2 x SATA 6Gb/s Cables
IO Shield
1 x M.2 SSD Screw Package
Support Disk
Manual
