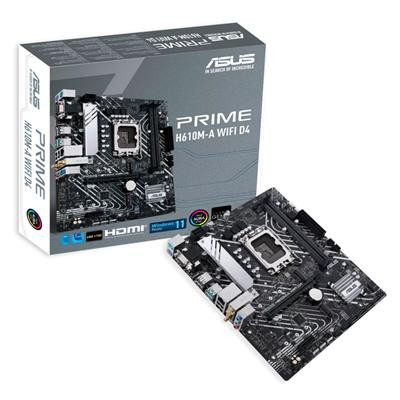

Asus PRIME H610M-A WIFI D4 Socket 1700/H610/Ddr4/S-Ata 600/Micro Atx PRIME H610M-A WIFI D4

Product Specifications



Product Name:

ASUS PRIME H610M-A WIFI D4 (Socket 1700/H610/DDR4/S-ATA 600/Micro ATX)



Web Address:

www.asus.com



Model Number:

PRIME H610M-A WIFI D4



EAN:

4711081758211



UPC:
5553758215



Package Type:

Retail



Warranty:

3 Years



BIOS:
8 Mb Flash ROM
UEFI AMI BIOS




Chipset:

Intel H610



CPU Interface:

Socket 1700



CPU Support:

https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-a-wifi-d4/helpdesk_qvl_cpu/



RAM Technology:

DDR4 (Dual Channel)



RAM Slots:

2 x 288-pin



RAM Speeds:

Up to DDR4 3200



Max. Memory Support:

64GB



PCI Express 4.0 x16:

1



PCI Express 3.0 x1:

1



S-ATA 6Gb/s Port(s):

4



M.2 Socket(s):

1 x PCIe Gen 3.0 x4
1 x PCIe Gen 3.0 x2




On-Board LAN:

1 x Intel 1Gb Ethernet



Wireless NIC:

WiFi 5



Wireless Technology:

IEEE 802.11 a/b/g/n/ac

Supports 2.4/5GHz frequency band




Bluetooth:

v5.0



On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back PS/2 Mouse Port:

1



Back PS/2 Keyboard Port:

1



Back USB 2.0 Port(s):

4



Back USB 3.2 Port(s) Type-A Gen 2:

2



Back VGA Port(s):

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

1 x Wi-Fi Module



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

3 x Addressable Gen 2 Headers
2 x AURA RGB Headers




Form Factor:

Micro ATX



Product Width:

211mm



Product Length:

244mm



Package Width:

26.5cm



Package Length:

27cm



Package Height:

5.2cm



Gross Weight:

1.01Kg



Special Features:

Intel LGA 1700 socket: Ready for 13th and 12th Gen Intel processors.
Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+.
Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports.
Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.




Package Contents:

Motherboard
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x IO Shield
1 x M.2 SSD screw package
1 x Support Disk
1 x User guide
