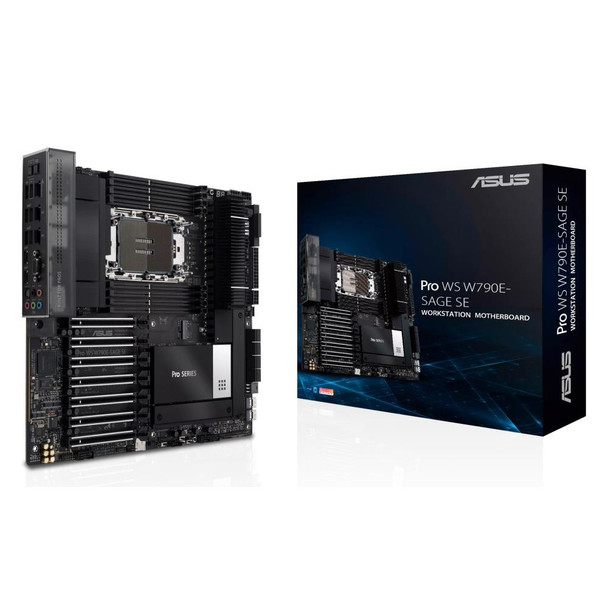

Asus PRO WS W790E-SAGE SE Workstation Socket 4677/W790/Ddr5/S-Ata 6Gb/S/Eeb PRO WS W790E-SAGE SE

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
3404


Product Specifications



Product Name:

ASUS Pro WS W790E-SAGE SE Workstation (Socket 4677/W790/DDR5/S-ATA 6Gb/s/EEB)



Web Address:

www.asus.com



Model Number:

PRO WS W790E-SAGE SE



EAN:

4711387123515



UPC:
7105123519



Package Type:

Retail



Warranty:

3 Years



BIOS:

512 Mb Flash ROM
UEFI AMI BIOS




Chipset:

Intel W790



CPU Interface:

Socket 4677



CPU Support:

https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-w790e-sage-se/helpdesk_qvl_cpu/?model2Name=Pro-WS-W790E-SAGE-SE



RAM Technology:

DDR5 (8 Channel)



RAM Slots:

8 x 288-pin



RAM Speeds:

Up to DDR5 6800 (O.C.)



Max. Memory Support:
48GB



PCI Express 5.0 x16:

7



S-ATA 6Gb/s Port(s):

8



SAS Port(s):

2 x SlimSAS PCIe Gen 4.0 x4



M.2 Socket(s):

2 x PCIe Gen 5.0 x4
1 x PCIe Gen 4.0 x4




On-Board LAN:

1 x Intel dual 10Gb Ethernet
1 x Realtek 1Gb Ethernet




On-Board Audio:

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

1 x VGA port from AST2600



Back USB 3.2 Port(s) Type-A Gen 2:

4



Back USB 3.2 Port(s) Type-C Gen 2:

1



Back USB 3.2 Port(s) Type-C Gen 2x2:

1



Back VGA Port(s):

1



Back LAN Port(s):

3



Back Audio Jack(s):

5



Back S/PDIF Output Port(s):

1



Back Button(s):

1 x BIOS FlashBack
1 x Clear CMOS




24-pin ATX Power:

2



8-pin ATX Power:

4



PCIe Power Connector(s):

1 x 8-pin
1 x 6-pin




USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

1



USB 3.2 Header(s) Gen 2:

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):

1 x Thermal Sensor Header
1 x BMC Switch
1 x VGA Switch
1 x BMC LAN Fixed IP Switch
1 x IPMI Switch
2 x Q_PSU Switch
2 x PSU SMBus Header
1 x Front Panel Location LED Header
1 x VPP_I2C Header
1 x Micro SD Card Socket
1 x BMC_T_SENSOR Header
1 x BMC LED
1 x Location LED
1 x Message LED Header




Internal Button(s):

1 x ReTry
1 x Safe Boot
1 x Start1 x Location




Form Factor:

EEB



Product Width:

305mm



Product Length:

330mm



Package Width:

36cm



Package Length:

37.5cm



Package Height:

8cm



Gross Weight:

4.07Kg



Special Features:

Intel LGA 4677 socket: Ready for Intel Xeon W-3400 and W-2400 processors.
CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC).
Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C and 2 SlimSAS.
Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Centre Express.
Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates.
Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility.




Package Contents:

Motherboard
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
1 x VRM Fan holder
1 x Q-connector
1 x M.2 Rubber Package(s)
1 x M.2 backplate Rubber Package(s)
1 x Screw package for M.2 Key E
1 x CPU guard for LGA 4677 E1A
1 x CPU guard for LGA 4677 E1B
1 x ACC Express Activation Key Card
1 x User guide
