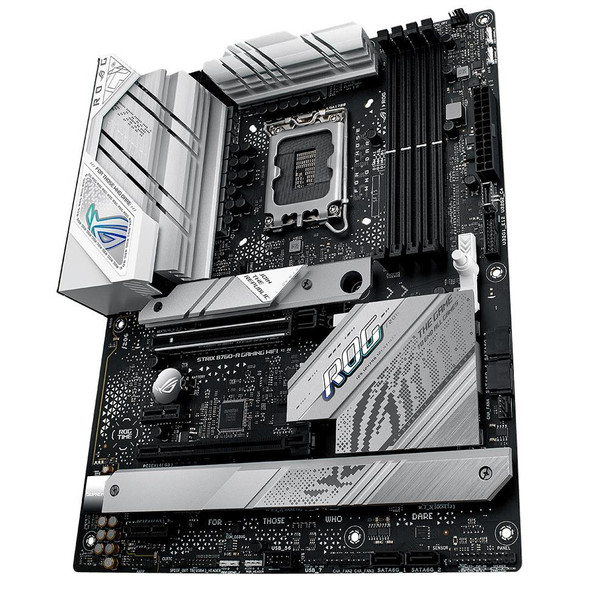

Asus ROG STRIX B760-A GAMING WIFI Socket 1700/B760/Ddr5/S-Ata 6Gb/S/Atx ROG STRIX B760-A GAMING WIFI

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
3347


Product Specifications



Product Name:

ASUS ROG STRIX B760-A GAMING WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus.com



Model Number:

ROG STRIX B760-A GAMING WIFI



EAN:

4711387114063



UPC:
7105114067



Package Type:

Retail



Warranty:

3 Years



BIOS:

256 Mb Flash ROM
UEFI AMI BIOS



Chipset:

Intel B760



CPU Interface:

Socket 1700



CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-a-gaming-wifi/helpdesk_knowledge/



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 7800+ (O.C.)



Max. Memory Support:
8GB



PCI Express 3.0 x16:

1



PCI Express 5.0 x16:

1



PCI Express 3.0 x1:

2



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

3 x PCIe Gen 4.0 x4



On-Board LAN:

1 x Intel 2.5Gb Ethernet ASUS LANGuard



Wireless NIC:

Wi-Fi 6E



Wireless Technology:

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band



Bluetooth:

v5.3



On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

4



Back USB 3.2 Port(s) Type-A Gen 1:

2



Back USB 3.2 Port(s) Type-C Gen 1:

1



Back USB 3.2 Port(s) Type-A Gen 2:

1



Back USB 3.2 Port(s) Type-C Gen 2x2:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

5



Back Other Port(s):

1 x Wi-Fi Module



Back Button(s):

1 x BIOS FlashBack



24-pin ATX Power:

1



8-pin ATX Power:

1



4-pin ATX Power:

1



USB 2.0 Header(s):

1



USB 3.2 Header(s) Gen 1:

1



USB 3.2 Header(s) Gen 2:

1



Thunderbolt Header(s):

1



Front Panel Audio Connector:

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Thermal Sensor header



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27.5cm



Package Length:

36cm



Package Height:

7cm



Gross Weight:

2.07Kg



Special Features:

Extreme Engine Digi+
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
Aura Sync



Package Contents:

Motherboard
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x M.2 Rubber Packages
1 x User guide
