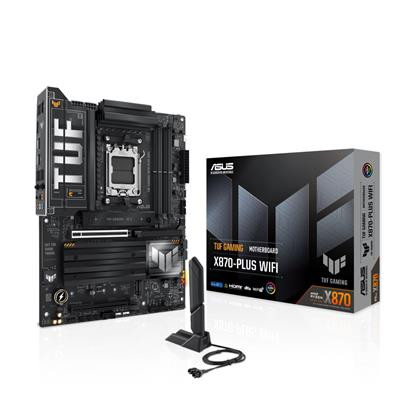

Asus TUF GAMING X870-PLUS WIFI Socket Am5/X870/Ddr5/S-Ata 6Gb/S/Atx TUF GAMING X870-PLUS WIFI

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
5652


Product Specifications



Product Name:

ASUS TUF GAMING X870-PLUS WIFI (Socket AM5/X870/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus.com



Model Number:

TUF GAMING X870-PLUS WIFI



EAN:

4711387723609



UPC:
7105723603



Package Type:

Retail



Warranty:

3 Years



BIOS:

256 Mb Flash ROM
UEFI AMI BIOS



Chipset:

AMD X870



CPU Interface:

Socket AM5



RAM Technology:

DDR5 (Quad Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8000 (O.C.)



Max. Memory Support:
2GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

2



RAID:

Raid 0/1/5/10



M.2 Socket(s):

2 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4



On-Board LAN:

1 x Realtek 2.5Gb Ethernet
TUF LANGuard



Wireless NIC:

Wi-Fi 7



Wireless Technology:

2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.



Bluetooth:

v5.4



On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC



Back USB 2.0 Port(s):

1



Back USB 5Gbps Port(s) Type-A:

4



Back USB 10Gbps Port(s) Type-A:

3



Back USB 40Gbps Port(s) Type-A:

2



Back HDMI Port(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

5



Back Other Port(s):

1 x Wi-Fi module



Back Button(s):

1 x BIOS FlashBack



24-pin ATX Power:

1



8-pin ATX Power:

2



USB 2.0 Header(s):

2



USB 5Gbps Header(s):

1



USB 20Gbps Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



Internal Other Port(s):

3 x Addressable Gen 2 headers
1 x Thermal Sensor header



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27.5cm



Package Length:

36cm



Package Height:

7cm



Gross Weight:

2.19Kg



Special Features:

ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.



Package Contents:

Motherboard
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
1 x Quick start guide
