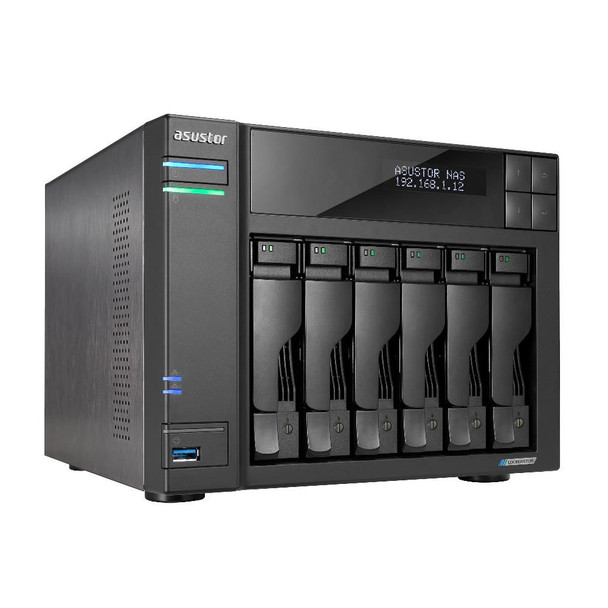

asustor AS6706T Lockerstor 6 Nas Desktop AS6706T

Enthusiast-grade NAS with two, four or six bays
The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel�s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.

Unleashed Potential
Supports Premiere Pro & Final Cut Pro
Easily collaborate with anyone, anywhere.
Adobe Creative Cloud data backup and version control
Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality

CPU
Intel�s newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.

Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.

USB 3.2 Gen 2x1 � A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.

Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.

Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.

Certificates



Certification



FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA


Design



Built-in display



Yes


Chassis type



Desktop


Cooling type



Active


Display type



LCD


Fan diameter



12 cm


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84714100


Memory



Flash memory



8000 MB


Internal memory



8 GB


Internal memory type



DDR4


Maximum RAM supported



16 GB


Memory form factor



SO-DIMM


Memory slots



2


Network



Ethernet LAN



Yes


Ethernet LAN data rates



100, 1000, 2500


Jumbo frames support



Yes


Supported network protocols



CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



3.9 kg


Performance



Backup features



Cloud, USB drive, iSCSI LUN


Backup function



Yes


Browser supported



Firefox, Chrome, Safari, Microsoft Edge


Device class



Home & Home Office


Noise level



18.1 dB


Type



NAS


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


HDMI ports quantity



1


HDMI version



2.0b


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



2


USB port



Yes


Power



AC input voltage



100 - 240 V


Power consumption (HDD standby)



27.7 Watt


Power consumption (sleep)



0.81 Watt


Power consumption (typical)



48.5 Watt


Power supply location



External


Power supply unit (PSU) capacity



250 Watt


Processor



CPU configuration (max)



1


On-board graphics card model



Intel� UHD Graphics


Processor boost frequency



2.9 GHz


Processor cores



4


Processor family



Intel� Celeron�


Processor frequency



2 GHz


Processor manufacturer



Intel


Processor model



N5105


Processor threads



4


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Idle States



Yes


Intel 64



Yes


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Product dimensions



Net Weight (Product, kg)



3 kg


Product Depth



23 cm


Product Height



18.55 cm


Product Width



23.3 cm


Software



Linux operating systems supported



Y, Yes


Mac operating systems supported



MacOS


Operating system installed



ADM


Operating system version



4.1


Server operating systems supported



Windows Server 2003, Windows Server 2008, Windows Server 2012 Core, Windows Server 2016, Windows Server 2019, Windows Server 2022


Windows operating systems supported



Yes


Storage



Installed storage drive type



HDD


Number of M.2 (M & B) slots



4


Number of storage drives supported



6


RAID levels



0, 1, 5, 6, 10, JBOD


RAID support



Yes


Storage drive interface



M.2, Serial ATA, Serial ATA II, Serial ATA III


Storage drive sizes supported



2.5, 3.5, M.2


Storage drives installed



Yes


Supported file systems



BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


asustor


Warranty



1 Year(s)
