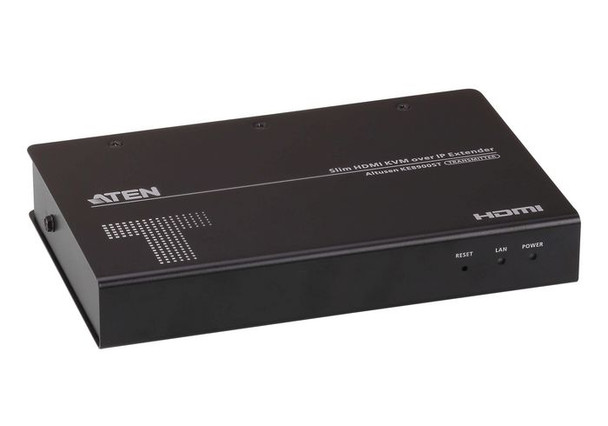

Aten KE8900ST-AX-E KE8900ST-AX-E KVM extender KE8900ST-AX-E

The KE8900S Slim HDMI KVM over IP Extender is a pair of compact and affordable high performance IP-based transmitter (KE8900ST) / receiver (KE8900SR) that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, HDMI monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users’ workstation. The KE8900ST or KE8900SR can be paired with any KE Series* receiver or transmitter for a savings...Read full description

Advance processor provides visually lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; compliant with HDMI 1.4a and HDCP 1.4
Flexible connections - allows multiple extender and matrix connections for Multi-Display installations and Video Wall applications
Slim, light, and fanless design
Push and Pull - share content instantly by just one click

Specifications
Features
Connectivity technology
Wired

KVM port selection
OSD, Push-buttons

LED indicators
Y

Material
Metal

Maximum digital resolution
1920 x 1200 Pixels

On Screen Display (OSD)
Y

Product colour
Black

Rack mounting
Y

Supported resolutions
640 x 480 - 1920 x 1200

Type
Transmitter

USB 2.0 ports quantity
1

Operational conditions
Operating relative humidity (H-H)
0 - 95 %

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-20 - 60 °C

Package dimensions
Depth (package,cm)
28.3 cm

Gross Weight (Package, kg)
1.306 kg

Height (package,cm)
17.3 cm

Width (package,cm)
10 cm

Packaging content
AC adapter included
Y

Mounting bracket(s) included
Y

Ports & interfaces
RS-232 ports
1

USB port type
USB Type-B

Power
Power consumption (transmitter) (max)
6.61 Watt

Product dimensions
Net Weight (Product, kg)
1.3 kg

Transmitter
RJ-45 ports quantity (transmitter)
1

Transmitter local keyboard/mouse port type
USB

Transmitter video port type
HDMI

Vendor information
Brand Name
Aten

Warranty
2 Year(s)

Weight & dimensions
Transmitter depth
11.75 cm

Transmitter height
2.87 cm

Transmitter weight
650 g

Transmitter width
18.2 cm
