Axis

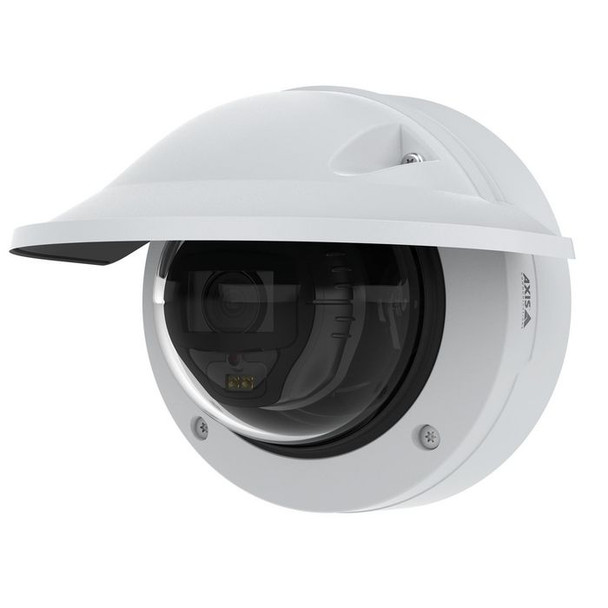

Axis 02330-001 P3267-LVE 02330-001
- UPC:
- 7331021075962
- MPN:
- 02330-001
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
High-performance fixed dome camera with Deep Learning Processing Unit (DLPU). Forensic WDR, Lightfinder 2.0 and Optimized IR. Discreet, dust- and IK10 vandal-resistant outdoor casing.
Varifocal 3-8 mm P-Iris lens with remote zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 5MP stream in 4:3 up to 30fps.. AXIS Object Analytics, Video motion detection and tampering alarm. Two-way audio and audio detection. Supervised digital input / digital output for alarm / event handling. MQTT support. Axis Edge Vault for added cyber security. Built in case open switch. MicroSD memory card slot for local storage. Powered by IEEE 802.3af/802.3at Type 1 Class 3. Extended temperature range. Includes mounting bracket and weather shield.
Audio
Audio detection
Yes
Camera
Angle of rotation
190 �
Camera pan control
Yes
Camera shutter speed
1/33500 - 1/5 Second
Camera tilt control
Yes
Minimum illumination
0.13 lx
Pan range
-190 - 190 �
Tilt angle range
-10 - 80 �
Design
Form factor
Dome
Housing material
Polycarbonate (PC)
IK code
IK10
International Protection (IP) code
IP66
Mounting type
Ceiling/wall
Product colour
White
Image sensor
Number of sensors
1
Optical sensor size
1/2.7 "
Progressive scan
Yes
Sensor type
CMOS
Lens system
Focal length range
3 - 8 mm
Normal focusing range
1 m
Number of lenses
1
Zoom capability
Yes
Network
Bluetooth
No
Ethernet LAN
Yes
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support
Yes
Wi-Fi
No
Night vision
Infra-red wavelength
850 nm
LED type
IR
Night vision
Yes
Night vision distance
40 m
Operational conditions
Operating relative humidity (H-H)
10 - 100 %
Operating temperature (T-T)
-40 - 50 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 65 �C
Package dimensions
Depth (package,cm)
21 cm
Gross Weight (Package, kg)
1.16 kg
Height (package,cm)
15 cm
Width (package,cm)
20 cm
Packaging content
Drilling template included
Yes
Manual
Yes
Number of cameras
1
Performance
Certification
EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Connectivity technology
Wired
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Number of languages
12
Placement supported
Outdoor
PTZ modes
Digital PTZ
Type
IP security camera
Wide Dynamic Range (WDR)
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Terminal block port
Yes
Power
Power consumption (max)
12.1 Watt
Power consumption (typical)
6.4 Watt
Power source type
PoE
Product dimensions
Net Weight (Product, kg)
1.6 kg
Product Height
10.7 cm
Security
Active tampering alarm
Yes
Alert notification type
E-mail
HTTPS encryption
Yes
IP address filtering
Yes
Password protection
Yes
Video motion detection
Yes
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8192 MB
Internal memory
2048 MB
Vendor information
Brand Name
Axis
Video
Bit rate control
Variable Bit Rate (VBR)
Flip & mirror
Yes
Frame rate
30 fps
Gain control type
Auto
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Maximum resolution
2592 x 1944 Pixels
Privacy masking
Yes
Smart IR
Yes
Text caption overlay
Yes
Total megapixels
5 MP
Video compression formats
H.264, H.265, M-JPEG
Video recording
Yes
Video streaming
Yes
Weight & dimensions
Diameter
14.9 cm
View AllClose
