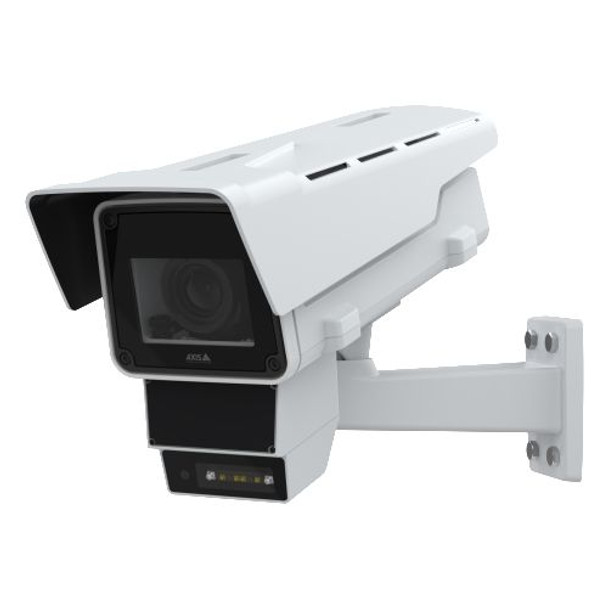

Axis 02420-001 Q1656-DLE 02420-001

This unique device fuses two powerful technologies to deliver next-level detection and visualization for reliable wide-area intrusion protection 24/7. Video and radar analytics come together in AXIS Object Analytics to provide precise localization and object classification powered by deep learning and distance and speed measurements based on an object�s radar signature and movement characteristics. By default, our intelligent fusion system handles notifications in the most advantageous way depending on what best suits the circumstances. Or, if you prefer, you can choose between minimizing false notifications or never missing a thing.

Audio



Audio detection



Yes


Audio formats supported



AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM


Audio system full duplex



Yes


Camera



Camera pan control



Yes


Camera shutter speed



1/47500 - 1 Second


Camera tilt control



Yes


Minimum illumination



0.05 lx


Design



Form factor



Box


IK code



IK08


International Protection (IP) code



IP66


LED indicators



Y, Yes


Mounting type



Ceiling/wall


Product colour



White


Image sensor



Number of sensors



1


Optical sensor size



1/1.8 "


Progressive scan



Yes


Sensor type



CMOS


Lens system



Auto focus



Yes


Focal length range



3.9 - 10 mm


Normal focusing range



0.5 m


Number of lenses



4


Optical zoom



2.5 x


Zoom capability



Yes


Network



Ethernet LAN



Yes


Networking standards



IEEE 802.1x, IEEE 802.3af, IEEE 802.3at


Quality of Service (QoS) support



Yes


Night vision



Infra-red wavelength



850 nm


LED type



IR


Night vision



Yes


Night vision distance



50 m


Operational conditions



Operating relative humidity (H-H)



10 - 100 %


Operating temperature (T-T)



-40 - 60 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 65 �C


Package dimensions



Depth (package,cm)



21 cm


Gross Weight (Package, kg)



6.2 kg


Height (package,cm)



30 cm


Width (package,cm)



56.5 cm


Packaging content



Number of cameras



1


Performance



Alarm input/output



Yes


Connectivity technology



Wired


Day/night mode



Yes


Infrared (IR) cut-off filter



Yes


Languages support



Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian


Number of languages



12


Placement supported



Outdoor


PTZ control



Yes


PTZ modes



Digital PTZ


PTZ protocols



Pelco-D


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Terminal block port



Yes


Power



AC input voltage



10 - 28 V


Power consumption (max)



25.5 Watt


Power consumption (typical)



9.5 Watt


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



3.8 kg


Security



Alert notification type



E-mail, Text alert message


Digest authentication



Yes


HTTPS encryption



Yes


IP address filtering



Yes


Password protection



Yes


Pixel counter



Yes


Security algorithms



EAP-TLS


Video motion detection



Yes


Storage



Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD


Flash memory



8194 MB


Internal memory



2048 MB


Technical details



Doesn't contain



BFR, PVC


Vendor information



Brand Name


Axis


Video



Bit rate



Configurable bit rate


Flip & mirror



Yes


Frame rate



60 fps


Gain control type



Auto


Image quality adjustment



Brightness, Contrast, Saturation


Maximum resolution



2688 x 1512 Pixels


Noise reduction



Yes


Privacy masking



Yes


Text caption overlay



Yes


Total megapixels



4 MP


Video compression formats



H.264, H.265


Video recording



Yes


Video streaming



Yes
