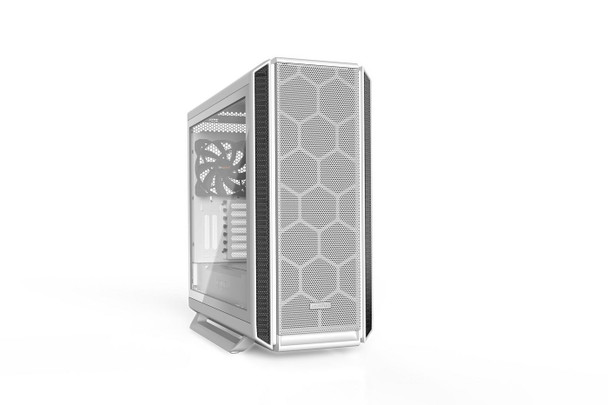

be quiet! BGW40 Silent Base 802 Window White BGW40

EXCELLENT VERSATILITY, PERFORMANCE AND SILENCE
The be quiet! Silent Base 802 Window White is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.

INTERCHANGEABLE TOP COVER
Optimized for air or water cooling
The first of 2 included top covers perfectly rounds off the design of the Silent Base 802 Window White and ensures a silent operation. For all who strive for extremely powerful cooling and especially with water-cooled systems, the highly air-permeable top cover is the right choice.

INTERCHANGEABLE FRONTPANEL
Ensures maximum performance or whisper-quiet operation
The airflow front panel provides maximum performance for sophisticated configurations with highest demands for low temperatures. The standard front panel is the perfect choice for silent systems and regular PC configurations. Both panels are included.

THREE PREINSTALLED
PURE WINGS 2
Whisper-quiet operation
3 preinstalled Pure Wings 2 140mm fans with airflow-optimized fan blades ensure perfect airflow and solid cooling no matter if you chose a high airflow or a silence optimized configuration.

SUPERB NOISE DAMPENING
Extra thick insulation for maximum stability and silence
The front and sides are equipped with extra thick dampening mats of up to 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket, motherboard tray and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.

SMART I/O PORT
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of the latest hardware. The integrated 4-step fan controller allows the setting of the speed of up to 6 fans manually or connect all to one PWM signal.

VERSATILE MOTHERBOARD TRAY
Designed to fit individual requirements
The motherboard tray is decoupled and can be installed alongside the left panel in an inverted layout. It is also removable for use as a test bench.

FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm or 420mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.

TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with white painted side bars.

Cooling



Front fans diameters supported



120, 140


Front fans installed



2x 140 mm


Front radiator sizes supported



120, 140, 240, 280, 360, 420


Liquid cooling capability



Yes


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



3


Rear fans diameters supported



120, 140


Rear fans installed



1x 140 mm


Rear radiator sizes supported



120, 140


Top fans diameters supported



120, 140


Top radiator sizes supported



120, 240, 360


Design



Anti-dust filter



Yes


Cable management



Yes


Certification



CE, RoHS


Form factor



Midi Tower


Material



Acrylonitrile butadiene styrene (ABS), Steel


Maximum CPU cooler height



18.5 cm


Maximum graphics card length



44.9 cm


Maximum PSU length



28.8 cm


Number of 2.5" bays



7


Number of 3.5" bays



3


Number of expansion slots



9


On/off button



Yes


Product colour



White


Side window



Yes


Supported motherboard form factors



ATX, EATX, micro ATX, Mini-ITX


Tempered glass panel(s)



Yes


Type



PC


Logistics data



Harmonized System (HS) code



84733080


Other features



Screws included



Yes


Stand included



Yes


Package dimensions



Depth (package,cm)



65.1 cm


Gross Weight (Package, kg)



19.37 kg


Height (package,cm)



61.5 cm


Width (package,cm)



32.3 cm


Ports & interfaces



Audio input



Y


Audio output



Y


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Power supply included



No


Power supply location



Bottom


Supported power supply form factors



ATX, PS2


Product dimensions



Net Weight (Product, kg)



14.9 kg


Product Depth



53.9 cm


Product Height



55.3 cm


Product Width



28.1 cm


Storage



Supported HDD sizes



2.5, 3.5


Vendor information



Brand Name


be quiet!


Warranty



1 Year(s)
