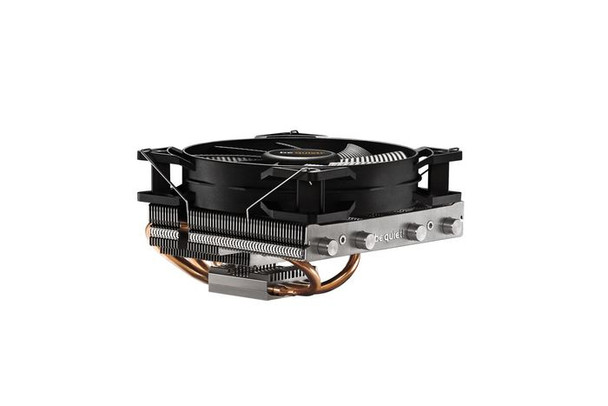

be quiet! BK002 Shadow Rock LP Processor BK002

SHADOW ROCK LP
Exceptional Cooling, Significant Quiet

Fitting everything you want into a HTPC or Small Form Factor PC can be tough, quietly cooling those cramped components is far tougher. Shadow Rock LP is the ultra-compact CPU cooler from be quiet! that solves that problem.

Featuring four 6mm heat pipes, a Pure Wings 2 120mm PWM fan with airflow-optimized fan blades as well as an user-friendly mounting solution, Shadow Rock LP generates only 25.5dB(A) noise under maximum load yet boasts generous 130W TDP cooling capacity.

Shadow Rock LP is a space-saving wonder that brings be quiet!�s premium cooling technology to restricted spaces at a very attractive price point.

HIGH COOLING EFFICIENCY
Quiet and reliable cooling of your components
Shadow Rock LP offers a high cooling capacity of 130W TDP and is especially perfect for use in compact systems.

HIGH-PERFORMANCE HEAT PIPES
Offering fast and reliable heat transfer
Four 6mm heat pipes carry the heat efficiently and quickly to optimum locations on the cooling fins. This way the cooler achieves the best possible mixture of premium cooling performance in a restricted space and remarkably quiet operation.

WHISPER-SILENT PURE WINGS 2 FAN
Even at 100% fan speed, overall noise is a mere 25.5dB(A)
The Pure Wings 2 120mm PWM fan supports the best balance of perfect cooling and quiet operation. Nine silence-optimized fan blades generate high airflow characteristics that reduce noise-generating turbulences. The fan�s durable rifle-bearing technology contributes to a long lifespan of up to 80,000 hours.

EASY ACCESS, EVEN IN COMPACT PC ENCLOSURES
Highly convenient and compact design
Low-profile is a space-saving design that allows you easy access to components even in the very tight confines of compact PCs. This cooler also makes it possible to mount it from atop the motherboard, which adds further convenience.

Design



Fan connector



4-pin


Fins material



Aluminium


Material



Aluminium, Copper


Number of fan blades



9


Number of fans



1 fan(s)


Number of fins



88


Number of heat pipes



4


Product colour



Black, Copper, Silver


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



16 cm


Gross Weight (Package, kg)



0.82 kg


Height (package,cm)



17 cm


Width (package,cm)



14 cm


Packaging content



Screws included



Yes


Performance



Airflow



87 m�/hr


Bearing type



Rifle bearing


Fan diameter



12 cm


Maximum air pressure



1.25 mmH2O


Maximum airflow



51.4 cfm


Mean time between failures (MTBF)



80000 Hour


Noise level (high speed)



25.5 dB


Noise level (low speed)



14.8 dB


Pulse-width modulation (PWM) support



Yes


Rotational speed (max)



1500 RPM


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), Socket AM4, Socket AM5


Type



Cooler


Power



Power supply



2.4 Watt


Rated current



0.2 A


Thermal Design Power (TDP)



130 Watt


Voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.395 kg


Product Depth



13.4 cm


Product Height



7.54 cm


Product Width



12.2 cm


Vendor information



Brand Name


be quiet!


Warranty



1 Year(s)


Weight & dimensions



Cable length



0.22 m


Fan dimensions (W x D x H)



120 x 120 x 25 mm


Heat pipes diameter



6 mm
