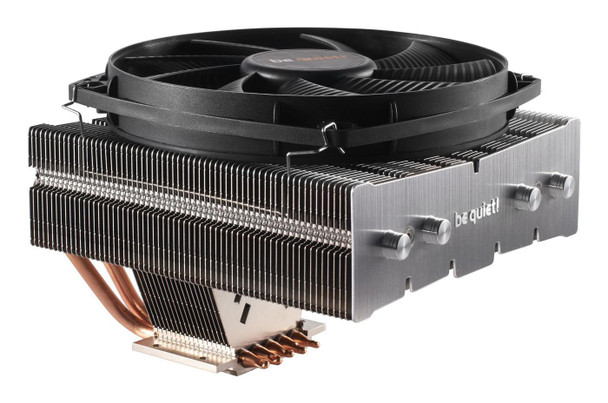

be quiet! BK003 SHADOW ROCK TF 2 CPU Cooler BK003

SHADOW ROCK TF 2
Compact Cooling, Significantly Quiet

Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.

HIGH-PERFORMANCE HEATPIPES
Offering the system an impressive cooling performance
Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.

DIRECT CONNECTION OF BASE PLATE AND FINS
For highly effective cooling power
An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.

EXTREMELY SILENCE-OPTIMIZED OPERATION
Even at 100% fan speed the overall noise is merely 24.4dB(A)
Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the nine airflow-optimized fan blades and durable rifle-bearing technology.

SMALL, DIAGONALLY ARRANGED FINS
Produce the perfect airflow
The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel� or AMD� socket.

SPACE-SAVING TOP-FLOW DESIGN
Benefit from this highly functional concept
The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem.

Design



Fan connector



4-pin


Fins material



Aluminium


Material



Aluminium, Copper


Number of fan blades



9


Number of fans



1 fan(s)


Number of fins



57


Number of heat pipes



5


Product colour



Black, Copper, Silver


Logistics data



Harmonized System (HS) code



84733080


Other features



Heatsink dimensions (W x D x H)



165 x 137 x 87 mm


Package dimensions



Depth (package,cm)



20.3 cm


Gross Weight (Package, kg)



1.09 kg


Height (package,cm)



13 cm


Width (package,cm)



17.8 cm


Packaging content



Screws included



Yes


Thermal pad included



Yes


Performance



Airflow



113.8 m�/hr


Bearing type



Rifle bearing


Fan diameter



13.5 cm


Maximum air pressure



2.1 mmH2O


Maximum airflow



67.8 cfm


Noise level (high speed)



24.4 dB


Noise level (low speed)



11.9 dB


Pulse-width modulation (PWM) support



Yes


Rotational speed (max)



2000 RPM


Rotational speed (min)



1400 RPM


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+


Type



Cooler


Power



Power supply



1.32 Watt


Rated current



0.11 A


Rated voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.68 kg


Product Depth



16.5 cm


Product Height



11.2 cm


Product Width



13.7 cm


Vendor information



Brand Name


be quiet!


Warranty



1 Year(s)


Weight & dimensions



Cable length



0.2 m


Fan dimensions (W x D x H)



135 x 135 x 22 mm


Heat pipes diameter



6 mm
