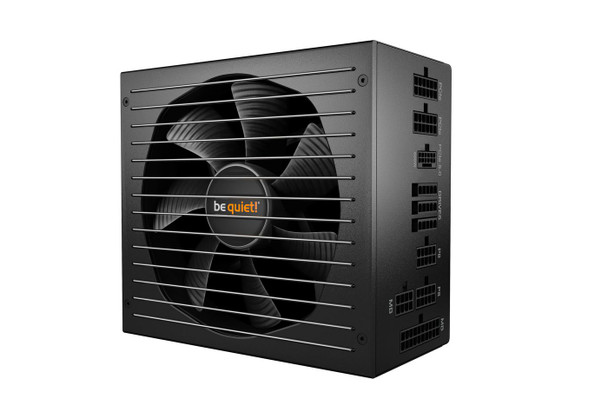

be quiet! BN338 Straight Power 12 Power BN338

World Class Quiet and Efficiency

Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS� Platinum certification and virtually inaudible operation.

80 PLUS� PLATINUM CERTIFIED
Highly efficient operation
Straight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.

FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Straight Power 12 1500W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.

FLAWLESS COOLING CONCEPT
For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.

STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

JAPANESE 105�C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105�C for stability, reliability, and a long operating life.

CONVENIENCE AND CONNECTIVITY
Maximum utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.

Design



Cooling type



Active


Fan diameter



13.5 cm


Fan speed



0 - 2100 RPM


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Logistics data



Products per shipping (inner) case



6 pc(s)


Shipping (inner) case height



34.6 cm


Shipping (inner) case length



65.1 cm


Shipping (inner) case net weight



22.94 kg


Shipping (inner) case width



28.2 cm


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Package dimensions



Depth (package,cm)



32.8 cm


Gross Weight (Package, kg)



0.35 kg


Height (package,cm)



10.2 cm


Width (package,cm)



24.8 cm


Packaging content



Cable tie(s) included



Yes


Cables included



CPU, SATA


Performance



80 PLUS certification



80 PLUS Platinum


ATX version



3.0


Bearing technology



FDB


EPS version



2.92


Mean time between failures (MTBF)



100000 Hour


Noise level



28.9 dB


Power supply unit (PSU) form factor



ATX


Purpose



PC


Supported motherboard form factors



ATX, micro ATX, Mini-ATX


Ports & interfaces



Cabling type



Modular


CPU power cable length



70 cm


EPS power connector (4+4 pin)



Yes


EPS power connector (8-pin)



Yes


Motherboard power cable length



60 cm


Motherboard power connector



20+4 pin ATX


Number of PATA power connectors



2


Number of SATA power connectors



9


PCI Express power cable length



60 cm


PCI Express power connectors (16-pin)



1


PCI Express power connectors (6+2 pin)



4


Peripheral (Molex) power cable length



1000, 850


SATA power cable length



550, 700, 850, 1000


Power



AC input frequency



50/60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



999.6 Watt


Combined power (+3.3V)



150 Watt


Combined power (+5V)



150 Watt


Efficiency



91.8 %


Hold time



25.3 Millisecond


Input current



13/6.5 A


Max output current (+12V)



83.3 A


Max output current (+3.3V)



25 A


Max output current (+5V)



25 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.5 A


Peak power



1070 Watt


Power factor



0.99


Power protection features



Over current, Over power, Over voltage, Overheating, Under voltage


Total power



1000 Watt


Product dimensions



Net Weight (Product, kg)



0.27 kg


Product Depth



16 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Sustainability certificates



RoHS, Federal Communications Commission (FCC), Triman, UKCA, ENERGY STAR, WEEE, CE, ErP


Sustainability compliance



Yes


Warranty period



10 year(s)


Vendor information



Brand Name


be quiet!


Warranty



1 Year(s)
