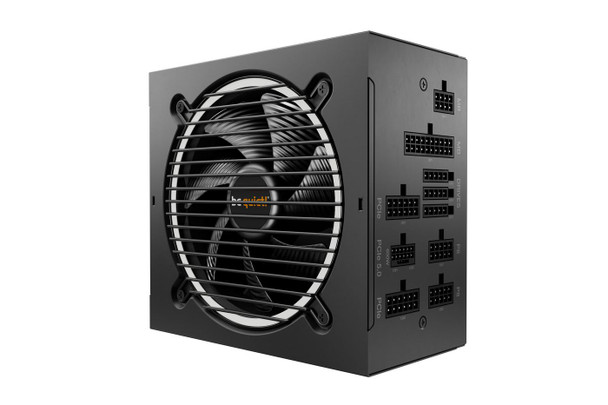

be quiet! BN346 Pure Power 12 M Power Supply BN346

EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.0 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class.

Design



Cooling type



Active


Fan diameter



12 cm


Fan speed



0 - 2700 RPM


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Logistics data



Products per shipping (inner) case



4 pc(s)


Shipping (inner) case height



24.3 cm


Shipping (inner) case length



29.8 cm


Shipping (inner) case net weight



12.7 kg


Shipping (inner) case width



42.6 cm


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Package dimensions



Depth (package,cm)



28.4 cm


Gross Weight (Package, kg)



0.91 kg


Height (package,cm)



10 cm


Width (package,cm)



22 cm


Packaging content



Cable tie(s) included



Yes


Cables included



AC, CPU, PATA, PCIe, SATA


Performance



80 PLUS certification



80 PLUS Gold


ATX version



3.0


Bearing technology



Rifle


EPS version



2.92


Mean time between failures (MTBF)



100000 Hour


Noise level



34.3 dB


Power supply unit (PSU) form factor



ATX


Purpose



PC


Silent mode



Yes


Supported motherboard form factors



ATX


Ports & interfaces



ATX power connector (20+4 pin)



Yes


Cabling type



Modular


CPU power cable length



60 cm


CPU power connector (4+4 pin)



Yes


EPS power connector (8-pin)



Yes


Motherboard power cable length



55 cm


Motherboard power connector



20+4 pin ATX


Number of PATA power connectors



2


Number of SATA power connectors



6


PCI Express connector



Yes


PCI Express power cable length



60 cm


PCI Express power connectors (6+2 pin)



4


Peripheral (Molex) power cable length



800, 950


SATA power cable length



500, 650, 800, 950


Power



AC input frequency



50/60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



1200 Watt


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Efficiency



91.5 %


Hold time



19 Millisecond


Input current



15 - 7.5 A


Max output current (+12V1)



55 A


Max output current (+12V2)



50 A


Max output current (+3.3V)



22 A


Max output current (+5V)



22 A


Max output current (-12V)



0.3 A


Peak power



1250 Watt


Power factor



0.98


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage


Total power



1200 Watt


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Depth



0.29 cm


Product Height



0.11 cm


Product Width



0.23 cm


Technical details



Sustainability certificates



BSMI, CB, CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, TUV, Triman, UKCA, WEEE, cTUVus


Sustainability compliance



Yes


Vendor information



Brand Name


be quiet!


Warranty



1 Year(s)
