Belkin

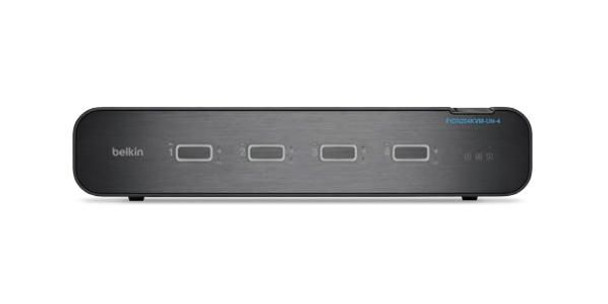

Belkin F1DN204KVM-UN-4 F1DN204KVM-UN-4 KVM switch F1DN204KVM-UN-4
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- F1DN204KVM-UN-4
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Designed to deliver a streamlined user experience when working across security enclaves, Belkin's Universal 2nd Gen Secure KVM switches meet the latest in Common Criteria and NIAP Protection Profile for Peripheral Switching Devices version 4.0 requirements. Compatible with the optional Belkin KVM Remote Control with Integrated Keyboard, the Universal 2nd Gen Secure KVMs elevate the user experience while vastly improving enclave awareness and minimizing operator errors. The keyboard combined with a variety of mounting options from Belkin helps declutter the desk without jeopardizing operator control. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. Innovative video combo connectors combined with auto-sensing and internal converters make the Universal 2nd Gen SKVM Series compatible with modern and legacy systems, eliminating the need for external converters and their inherent cost and compatibility problems. Always on, active anti-tamper and some of the most advanced protections against ultrasonic audio attacks round out the Universal 2nd Gen SKVMs. US-Manufactured and TAA-compliant, these secure KVM series are ideal for use in IT environments that demand rigorous cybersecurity provisions�including government, military, and healthcare applications.
Meets the Highest Standards for Cybersecurity
Ideal for highly sensitive applications that demand isolation between different network security enclaves. The Belkin Universal 2nd Gen Secure KVM Switches utilize optical data diodes and peripheral emulation on each channel to help prevent data leakage between computers while maintaining strict air-gap isolation, even when sharing peripherals. An 8th order elliptical audio filter protects against ultrasonic attacks.
Universal Video Compatibility With Combo Connector and Internal Conversion
DisplayPort/HDMI combo connectors on each input and output allow the same KVM to accommodate systems with DisplayPort, HDMI, and DVI video outputs and modern and legacy monitors, eliminating the need, cost, and uncertainties with external converters. This flexibility enables IT managers to deploy the same, secure KVM switch across their network and prolong the useful life of the KVM simply by matching the appropriate Belkin cable with each connected system and monitor. Cutting-edge video performance delivers up to 4K resolution and 60Hz refresh on each display.
Belkin KVM Remote Control With Integrated Keyboard Elevates the User Experience
The Universal 2nd Gen Secure KVMs are compatible with Belkin�s innovative KVM Remote Control with Integrated Keyboard. The remote control combines channel selection with a backlit mechanical keyboard that mimics the enclave color codes for each channel, minimizing operator errors. The ability to control the KVM via the remote combined with Belkin�s mounting options help enhance user experience and efficiency by decluttering the desk.
Design
Certification
FCC Class B UL CE RoHS ICES RCM
Housing material
Aluminium, Metal
Product colour
Black
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176200
Operational conditions
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
0 - 80 %
Storage temperature (T-T)
-20 - 60 �C
Package dimensions
Gross Weight (Package, kg)
0.51 kg
Packaging content
AC adapter included
Yes
Cables included
AC
Manual
Yes
Performance
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 Pixels
Video bandwidth
60 Hz
Ports & interfaces
Audio connections
Yes
Console ports
3.5mm headphone, DisplayPort, HDMI, RJ�45, USB A
DC-in jack
Yes
DisplayPort version
1.2
DisplayPorts quantity
2
HDMI ports quantity
2
HDMI version
2.0
Keyboard port type
USB
Mouse port type
USB
Number of computers controlled
4
USB connector type
USB Type-B
Video port type
HDMI/DisplayPort
Power
AC input voltage
100 - 240 V
DC input voltage
12 V
External power adapter
Yes
Input current
2.5 A
Power source
AC
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
16.26 cm
Product Height
9.14 cm
Product Width
31.75 cm
Vendor information
Brand Name
Belkin
Warranty
1 Year(s)
