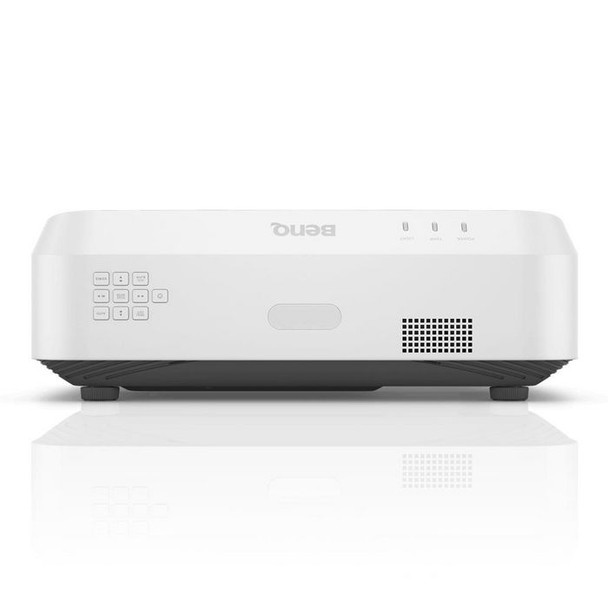

BenQ 9H.JJC77.3HE WXGA PROJECTOR LW890UST WHITE 9H.JJC77.3HE

Design



Cable lock slot



Yes


LED indicators



Y, Yes


Market positioning



Presentation


Placement



Ceiling, Desktop


Product colour



White


Product type



Ultra short throw projector


Features



HDCP



Yes


Noise level



35 dB


Noise level (economic mode)



32 dB


Number of OSD languages



28


On Screen Display (OSD)



Yes


Lens system



Fixed focal length



6.9 mm


Focus



Manual


Offset



117.3 %


Throw ratio



0.24:1


Light source



Light source type



Laser


Service life of light source



20000 Hour


Multimedia



Built-in speaker(s)



Yes


Number of built-in speakers



1


RMS rated power



10 Watt


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Smart TV



No


Operational conditions



Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



96.8 cm


Gross Weight (Package, kg)



18.95 kg


Height (package,cm)



28.1 cm


Width (package,cm)



52 cm


Packaging content



Batteries included



Yes


Cables included



AC, VGA


Manual



Yes


Mounting brackets included



Yes


Remote control included



Yes


Remote control type



IR


Ports & interfaces



AC (power) in



Yes


Audio (L/R) in



1


Composite video in



1


DVI port



No


HDMI ports quantity



2


Headphone outputs



1


Microphone in



Yes


Mini-USB 2.0 ports quantity



1


Mobile High-Definition Link (MHL)



Yes


PC Audio out



Yes


PC in (D-Sub)



Yes


Serial interface type



RS-232


S-Video inputs quantity



1


USB 2.0 ports quantity



1


VGA (D-Sub) ports quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Auto power off



Yes


Power consumption (economy mode)



274 Watt


Power consumption (max)



380 Watt


Power consumption (standby)



0.5 Watt


Power consumption (typical)



358 Watt


Power source



AC


Product dimensions



Net Weight (Product, kg)



9.07 kg


Product Depth



39.93 cm


Product Height



16.45 cm


Product Width



50.21 cm


Projector



Contrast ratio (typical)



100000:1


Horizontal scan range



15 - 102 kHz


Keystone correction, horizontal



-20 - 20 �


Keystone correction, vertical



-20 - 20 �


Matrix size



0.65 "


Matrix type



DMD


Native aspect ratio



16:10


Number of colours



1.073 billion colours


Projection technology



DLP


Projector brightness



4000 ANSI lumens


Projector native resolution



WXGA (1280x800)


Screen size compatibility



80 - 119 "


Vertical scan range



23 - 120 Hz


Storage



Card reader integrated



No


Vendor information



Brand Name


BenQ


Warranty



1 Year(s)


Video



3D



Yes


Analog signal format system



NTSC, PAL, SECAM


Full HD



No


Supported 3D formats



Frame Sequential, Frame packing, Side by side, Top and bottom


Supported graphics resolutions



640 x 480 (VGA), 1920 x 1200 (WUXGA)


Supported video modes



480i, 480p, 576i, 576p, 720p, 1080i, 1080p
