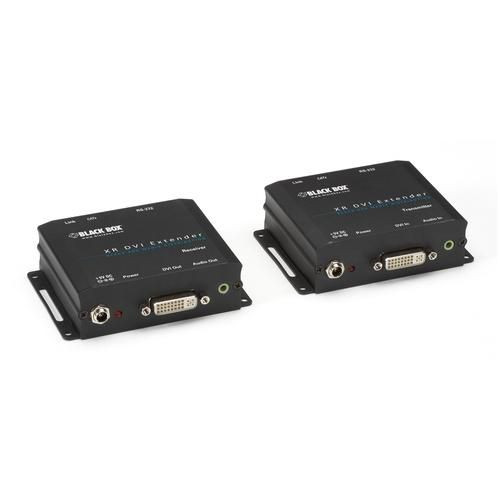

Black Box AVX-DVI-TP-100M XR DVI-D EXTENDER WITH AUDIO. AVX-DVI-TP-100M

Description
XR DVI-D Extender with Audio, RS-232, and HDCP

Quick Facts
- Use a single CAT5e/6/7 run for extending DVI-D video plus audio.
- Also extends RS-232 and HDCP signals to the remote screen.
- Goes much farther than standard DVI cabling�up to 330 feet (100 m)*.

Further Details
- Supports resolutions up to 1080p (HDTV) or 1920 x 1200 (VESA).
- Enables flexible screen location without compromising video quality.
- HDCP compliant and Blu-ray ready, and supports EDID.
- Transmits serial RS-232 TXD and RXD control signals.

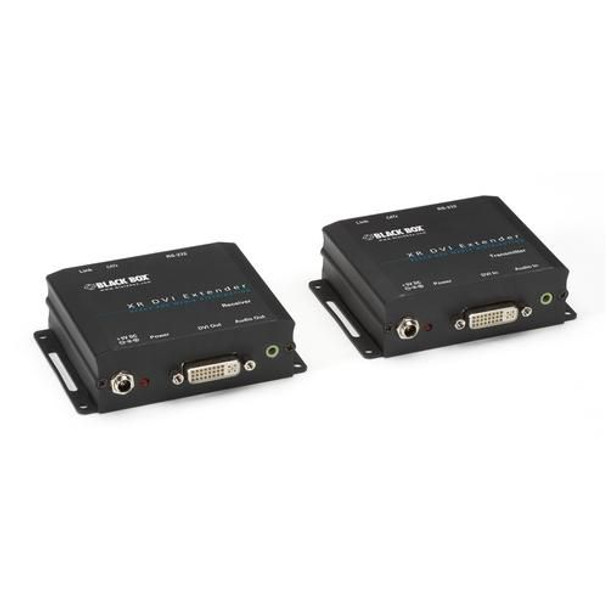

- Includes a transmitter and a wallmountable receiver.
- Auto equalization for extended video range.
- No software or driver installation required.
- Complies with the DVI 1.0 standard.

Put a digital DVI screen up to 330 feet (100 m)* from a video source and control a monitor via RS-232 TXD and RXD control signals with this extender.

Extending over a single CAT5e/6/7 cable, the transmitter-receiver combo supports both HDTV resolutions and VESA standards. The extender makes it easy to send digital 1080p-quality video and 2-channel stereo analog audio plus serial RS-232 control signals to a distant screen or projector.

Audio is integrated into the CATx cable extension, so you don't need a separate cable to transmit audio from the source to the screen.

Because the extender supports bidirectional RS-232 control, you can use serial commands from a PC to control RS-232 equipment or turn a remote screen on and off to save energy in your video application.

Plus, the XR DVI-D Extender with Audio, RS-232, and HDCP supports EDID and HDCP bypass, so you can also extend content from a protected-content source.

* NOTE: Distance depends on the characteristics and quality of the cable and the type of DVI source and display.

Features



Audio system



stereo


Bandwidth



10.2 Gbit/s


Bandwidth



340 MHz


Cable types supported



Cat5e, Cat6, Cat7


LED indicators



Link, Power


Maximum resolution



1920 x 1200 Pixels


Maximum transfer distance



100 m


Plug and Play



Yes


RoHS compliance



Yes


Supported graphics resolutions



1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)


Supported video modes



1080p, 480p, 720p


Type



AV transmitter & receiver


Wall mountable



Yes


Package dimensions



Gross Weight (Package, kg)



0.08 kg


Packaging content



Cables included



AC, DC


Manual



Yes


Packaging data



Package dimensions (WxDxH)



171.5 x 266.7 x 78.7 mm


Ports & interfaces



Audio input



1


Audio output



1


Connectivity technology



Wired


DVI input ports



1


DVI output ports



1


RJ-45 input ports



1


RJ-45 output ports



1


RS-232 input ports



1


RS-232 output ports



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



100-240 V


Current



0.8 A


Operating voltage



5 V


Power consumption (typical)



20 Watt


Product dimensions



Net Weight (Product, kg)



0.08 kg


Product Depth



26.67 cm


Product Height



7.874 cm


Product Width



17.145 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Black Box


Warranty



3 Year(s)


Weight & dimensions



Dimensions (WxDxH)



105 x 76 x 32 mm
