Black Box

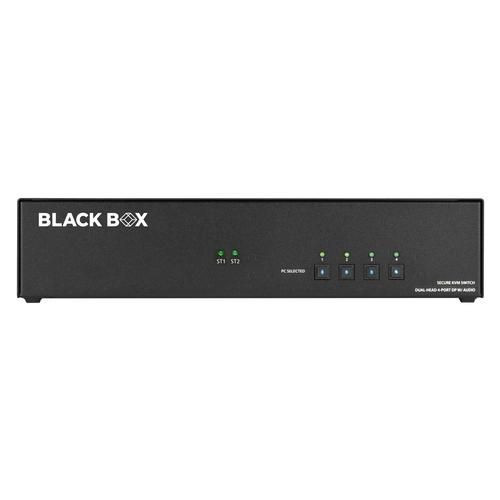

Black Box KVS4-2004VX KVS4-2004VX KVM switch KVS4-2004VX
- UPC:
- 0735816530860
- MPN:
- KVS4-2004VX
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Keep your sensitive data safe in defense applications, secure control rooms, corporate communications, server operations, educational administrations, medical facilities, banking networks, insurance data centers, transit management, industrial operations, intelligence communications, and more. This Secure KVM Switch features mechanical, electrical, and optical signal isolation to prevent hacking and data leakage in environments where security is paramount. Use the switch to control KVM (Keyboard, Video, and Mouse) operation on up to two or four computers with one or two DisplayPort displays.
Certified for NIAP Protection Profile for Peripheral Sharing Device Version 4.0
The Secure KVM Switches comply with the latest NIAP Protection Profile 4.0 so you get the best data protection available on the market today.
Control the Switch via Front-Panel Buttons
Use the clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple.
Isolated Data Channels and Non-Reprogrammable ROM Ensure Maximum Security
Data relays work one at a time to shield connections from outside intrusion. Inverted signals control the data relays. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch�s functions. There is no data leakage between ports. Would-be hackers can never gain access to your sensitive data by compromising the switch�s ROM.
Protects from Internet Data Breaches
The switch offers the highest security when accessing classified and public networks over the internet through isolated connections. By isolating connections between networks, no data is leaked between secure ports and the outside world.
Secure EDID Learn and Video Emulation
The Secure KVM emulates (simulates) the presence of a keyboard and mouse for every attached computer through a USB cable. Both selected and non-selected computers maintain a constant connection with the unit�s keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting the discovery of newly connected peripherals during switching operations. Emulation of keyboard and mouse also prevents the direct connection between the peripherals and the connected computers, shielding systems from potential vulnerabilities.
Tamperproof Seals Protect Your Devices
Built-in tamperproof seals and a long-life internal anti-tamper battery add even more security for your devices.
Design
Maximum cable length
6 m
Product colour
Black
Display
Built-in display
No
Operational conditions
Operating relative humidity (H-H)
0 - 80 %
Operating temperature (T-T)
0 - 40 �C
Storage temperature (T-T)
-20 - 60 �C
Package dimensions
Gross Weight (Package, kg)
2.59 kg
Packaging content
Cables included
DC
Performance
Audio channels
2
DDC/DDC2 supported
Yes
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 Pixels
Video bandwidth
30 Hz
Ports & interfaces
Audio connections
Yes
Console ports
3.5mm headphone, DisplayPort, USB A, USB B
Console USB ports quantity
2
DisplayPort version
1.2
DisplayPorts quantity
4
Headphone outputs
1
Keyboard port type
USB
Mouse port type
USB
Number of computers controlled
4
USB 2.0 Type-B ports quantity
4
Video port type
DisplayPort
Power
DC input voltage
12 V
External power adapter
Yes
Input current
3 A
Power source
DC
Product dimensions
Net Weight (Product, kg)
2.59 kg
Product Depth
20.8 cm
Product Height
8.28 cm
Product Width
37.01 cm
Technical details
Warranty period
3 year(s)
Vendor information
Brand Name
Black Box
Warranty
1 Year(s)
