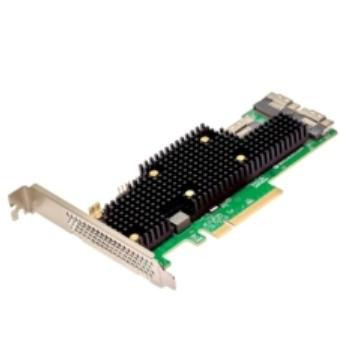

Broadcom 05-50111-01 Ehba 9600-24I Interface 05-50111-01

The 9600-24i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9600-24i eHBA delivers the performance and scalability needed by critical applications.

Design



Internal



Yes


Mean time between failures (MTBF)



5000000 Hour


Product colour



Green, Silver


Features



Data transfer rate (max)



12 Gbit/s


Plug and Play



Yes


S.M.A.R.T. support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 55 �C


Other features



Channels quantity



24 channels


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Packaging data



Quantity per pack



1 pc(s)


Ports & interfaces



Expansion card form factor



Full-height / Low-profile


Expansion card standard



PCIe 4.0


Host interface



PCIe


NVMe



Yes


Output interface



SAS, SATA


Power



Power consumption (typical)



17 Watt


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



6.89 cm


Product Width



15.56 cm


System requirements



Linux operating systems supported



Yes


Other operating systems supported



Yes


Server operating systems supported



SUSE Linux Enterprise Server


Windows operating systems supported



Y, Yes


Technical details



Sustainability certificates



RoHS, WEEE


Vendor information



Brand Name


Broadcom


Warranty



1 Year(s)
