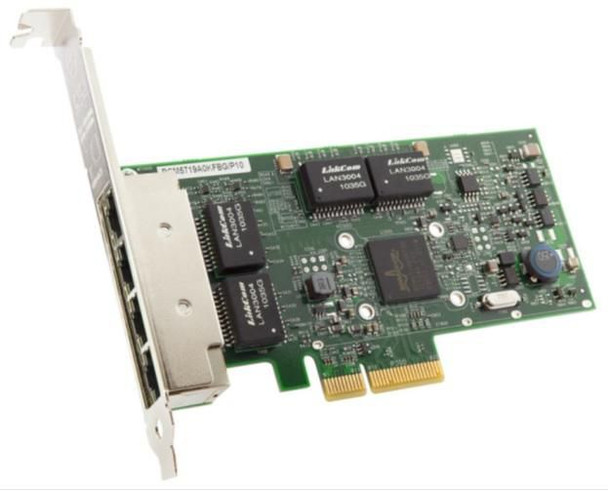

Broadcom BCM95719A1904AC Bcm5719-4P Internal Ethernet BCM95719A1904AC

Designed for today's enterprise and data center environments, Broadcom's NetXtreme® 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.

The BCM5719 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The BCM5719 includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support VMWare® NetQueue and Microsoft® VMQ technologies.

The BCM5719 includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.

Design



Component for



Server


Internal



Yes


Logistics data



Harmonized System (HS) code



85176990


Network



Cabling technology



10/100/1000BaseT(X)


Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Full duplex



Yes


Jumbo frames



1500


Jumbo frames support



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 °C


Storage temperature (T-T)



-40 - 65 °C


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



4


Host interface



PCI Express


Interface



Ethernet


PCI version



2.0


Product dimensions



Net Weight (Product, kg)



0.2 kg


Sustainability



Sustainability certificates



CE, RoHS


System requirements



Other operating systems supported



Novell Open Enterprise Server 11, VMware vSphere 5.0+


Server operating systems supported



Windows Server 2008, Windows Server 2008 R2, Windows Server 2012


Vendor information



Brand Name


Broadcom


Warranty



1 Year(s)
