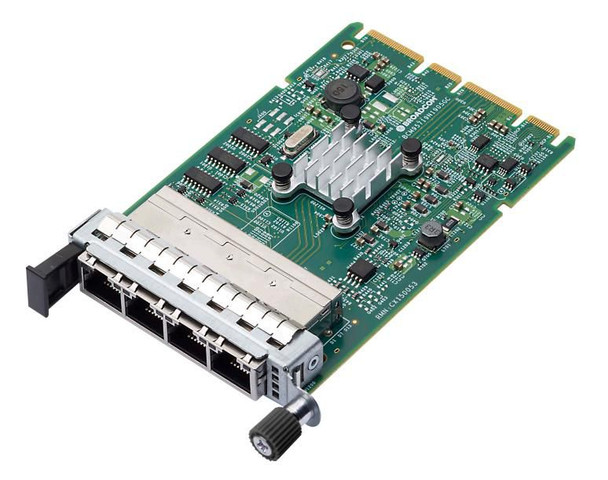

Broadcom BCM95719N1905C Broadcom N41T interface BCM95719N1905C

Designed for today's enterprise and data center environments, Broadcom's NetXtreme® 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.

The N41T quad-port 1Gb OCP 3.0 adapter is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The N41GBT OCP 3.0 adapter includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support the VMWare® NetQueue and Microsoft® VMQ technologies.

The N41T OCP 3.0 adapter includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.

Design



Certification



RoHS


Cooling type



Passive


Internal



Yes


LED indicators



Activity, Link


Product colour



Green


Features



Data transfer rate (max)



5 Gbit/s


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



Expansion card standard



PCIe 2.1


Host interface



PCIe


Host interface gender



Male


Output interface



RJ-45


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Broadcom


Warranty



1 Year(s)
