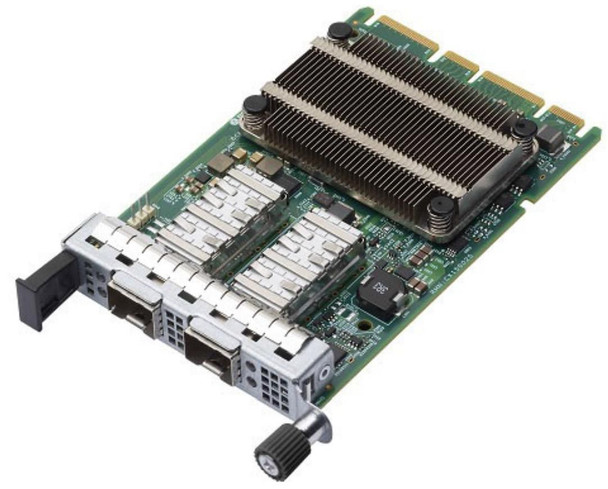

Broadcom BCM957414N4140C Netxtreme N225P 2 X 25G Ocp BCM957414N4140C

Based on Broadcom�s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme�-E Series N225P 2x25G OCP 3.0 adapter is designed to build highly-scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics.

The N225P 2x25G OCP 3.0 adapter builds upon the success of the widely-deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly-optimized hardware acceleration engines to enhance network performance and improve server efficiency.

Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF�. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.

With its market-leading hardware acceleration technologies, the NetXtreme-E Series N225P 2x25G OCP 3.0 adapter addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow� increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.

Design



Certification



SFF-8402


Form factor



OCP 3.0


Internal



Yes


LED indicators



Activity, Link


Product colour



Green


Logistics data



Harmonized System (HS) code



85176990


Network



Ethernet interface type



25 Gigabit Ethernet


Maximum data transfer rate



25000 Mbit/s


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SFP28


Fiber ports quantity



2


Host interface



PCI Express


Interface



Fiber


PCI version



3.0


Power



Power consumption (typical)



11.6 Watt


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Broadcom


Warranty



1 Year(s)
