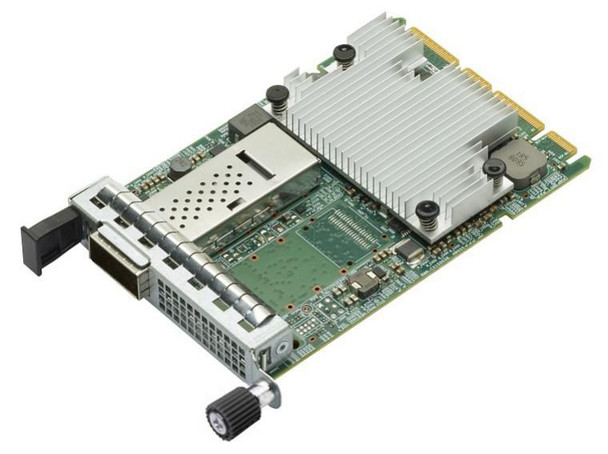

Broadcom BCM957504-N1100G Interface Cards/Adapter BCM957504-N1100G

Based on Broadcom�s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme�-E Series N1100G 1x100G OCP 3.0 adapter is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.

The N1100G 1x100G OCP 3.0 adapter builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly-optimized hardware acceleration engines to enhance network performance and improve server efficiency.

Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and

NVMe-oF�. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.

With its market-leading hardware acceleration technologies, the NetXtreme-E Series N1100G 1x100G OCP 3.0 adapter addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow� increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.

Design



Cooling type



Passive


Internal



Yes


LED indicators



Activity, Link


Product colour



Green, Silver


Operational conditions



Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



Expansion card standard



PCIe 3.0


Host interface



PCIe


Host interface gender



Male


Output interface



QSFP56


Product dimensions



Net Weight (Product, kg)



0.2 kg


Technical details



Doesn't contain



Halogen


Vendor information



Brand Name


Broadcom


Warranty



1 Year(s)
