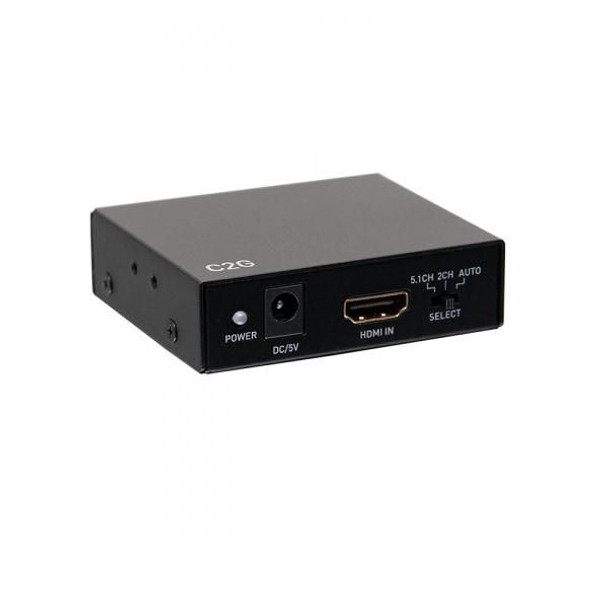

C2G C2G41003 Hdmi Audio Extractor With C2G41003

The HDMI Audio Extractor with TOSLINK, SPDIF and 3.5mm extracts the 5.1 audio from the HDMI input source and converts it into either a TOSLINK, S/PDIF, or 3.5mm Stereo audio signal. This device allows you to use separate speakers or an audio system with something that only has one HDMI output.

This HDMI Audio Extractor was designed to extract the digital audio that is embedded in HDMI source devices such as Apple TV®, Google Chromecast, gaming systems, and computers. The digital audio is then output to projectors or any other devices that do not provide an audio output and the system design calls for the use of an amplified audio reinforcement system. This extractor is easy to set up – simply connect the HDMI source to the extractor input, then connect the outputs to the display and amplifier or receiver.

This audio extractor supports HDMI video resolutions up to 4K at 60Hz, 3D formats up to 600 MHz, HDCP 2.2 and 1.4, and can toggle between 5.1CH, 2.0CH, or the toggle can be set to auto. The compact size and optional mounting ears allow the audio extractor to be mounted easily and conveniently for any installation.

Certificates



Certification



ROHS


Features



3D



Yes


Bandwidth



18 Gbit/s


Bandwidth



600 MHz


HD type



4K Ultra HD


HDCP



Yes


HDCP version



2.2


Material



Metal


Maximum refresh rate



60 Hz


Product colour



Black


Supported graphics resolutions



1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160


Supported video modes



720p, 1080i, 1080p


Logistics data



Harmonized System (HS) code



85176990


Operational conditions



Operating relative humidity (H-H)



10 - 80 %


Operating temperature (T-T)



0 - 45 °C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-10 - 80 °C


Package dimensions



Gross Weight (Package, kg)



0.27 kg


Ports & interfaces



3.5 mm (1/8-inch) out



Yes


DC-in jack



Yes


HDMI in



1


HDMI ports quantity



2


Number of HDMI outputs



1


S/PDIF out port



Yes


Video port type



HDMI


Power



AC adapter frequency



50/60 Hz


AC adapter output current



1 A


AC adapter output voltage



5 V


AC input voltage



100 - 240 V


Power consumption (max)



5 Watt


Product dimensions



Net Weight (Product, kg)



0.21 kg


Vendor information



Brand Name


C2G


Warranty



1 Year(s)
