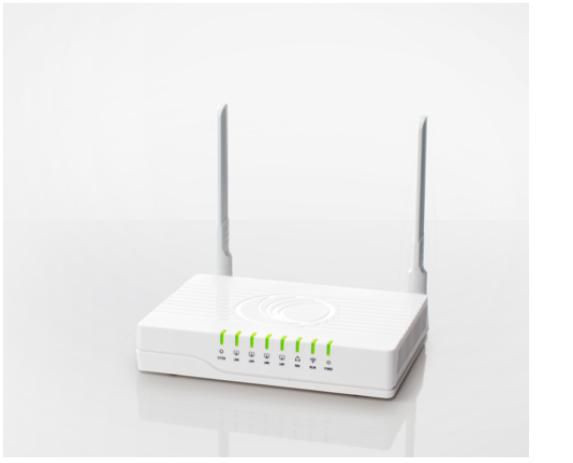

Cambium Networks PL-R190WEUA-WW cnPilot R190W Router EU PL-R190WEUA-WW

cnPilot Home & Small Business is a suite of 802.11ac and 802.11n home Wi-Fi network access points supported by cnMaestro� to provide end-to-end lifecycle administration, remote configuration, monitoring, and upgrades. With cnPilot Wi-Fi access points and cnMaestro management, customer satisfaction increases while network administration and maintenance costs decrease.

cnPilot Home and Small Business Wi-Fi Features
End-to-End Troubleshooting

Single dashboard view and rich stats ensure rapid root cause detection and issue resolution, to simplify wireless home networking.

Multiple SSIDs and Service Provider SSIDs

Offer SSIDs across the network � from home to work to public locations � to enable community access

cnMaestro Cloud or On-Premise Management

End-to-end home Wi-Fi network lifecycle management for inventory control, device onboarding, daily operations, and maintenance.

PoE out Port

Connect to Cambium PMP 450 and ePMP� subscriber modules

See the Cambium Wi-Fi Difference

Cloud or On-Premises management

Flexible architecture lets you manage the network the way you want.

Remote Configuration

Modules can be remotely configured, monitored, and upgraded.

Managing all your Wireless Devices Effortlessly
See a view from the clouds

With ease of use and vast scalability, cnMaestro has a full set of features targeted to cloud manage Cambium devices in a simple way.

Antenna



Antenna features



Integrated antenna


Antennas quantity



2


Design



Certification



FCC part 15 B Class B, ETSI EN301489-1, ETSIEN 301489-17, EN61000-6-1, EN61000-6-3, CE, RoHS IEC 60950-I, UL60950-I, EN 60950-I


Internal



No


LED indicators



LAN, Power, WLAN


Placement



Table


Product colour



White


Features



2.4 GHz



Yes


5 GHz



No


Ethernet LAN data rates



10, 100


Maximum data transfer rate



300 Mbit/s


Networking standards



IEEE 802.11n


Quality of Service (QoS) support



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



5 - 45 �C


Storage temperature (T-T)



-20 - 85 �C


Package dimensions



Depth (package,cm)



23.5 cm


Gross Weight (Package, kg)



0.45 kg


Height (package,cm)



7.5 cm


Width (package,cm)



19.5 cm


Ports & interfaces



Ethernet LAN (RJ-45) ports



3


USB 2.0 ports quantity



1


WAN connection



Ethernet (RJ-45)


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input frequency



50/60 Hz


Input voltage



100 - 240 V


Output current



1 A


Output voltage



5 V


Product dimensions



Net Weight (Product, kg)



0.35 kg


Product Depth



23.5 cm


Product Height



7.5 cm


Product Width



19.5 cm


Protocols



DHCP client



Yes


DHCP server



Yes


Supported protocols



DHCP/PPPoE/Static IP PPTP/L2TP VPN DMZ Dynamic DNS/DNS SRV NAT Traversal


Security



Auto Wireless Distribution System (WDS)



Yes


Number of SSID supported



4


Security algorithms



SNMP, WDS, WEP, WPA-PSK, WPA2-PSK, WPS


Service Set Identifier (SSID) features



SSID broadcast on/off


Vendor information



Brand Name


Cambium Networks


Warranty



1 Year(s)
