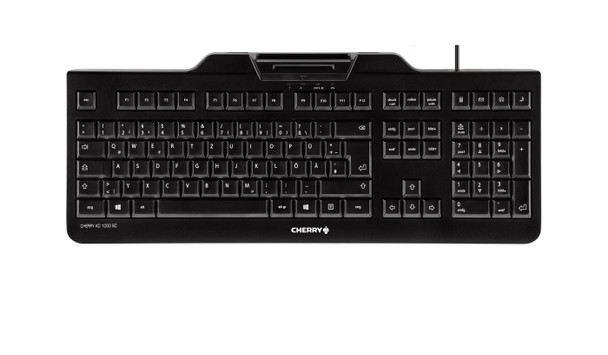

Cherry JK-A0100DE-2 KC 1000 SC schwarz JK-A0100DE-2

- Smart, wired security keyboard with integrated chip card terminal.
- Secure PIN entry.
- PC/SC smartcard reader.
- Protocols: T=0, T=1, S=8, S=9, S=10.
- EMV 2000 Level 1 approved.
- CCID compatible.
- Reading/writing ISO 7816 compliant smartcards.
- Supports firmware update in the field (through flash controller).
- Flat design, low smart card contacting unit.
- Satisfies requirements defined by FIPS-201 (approval process ongoing).
- German version with DIN/GS compliant layout.
- Driver support for Windows/MacOS-X/Linux.
- One-handed operation of smart card module.
- German version complies with BGI 650 guidance for ergonomics.

Design



Backlight



No


Keyboard style



Straight


Product colour



Black


Surface coloration



Monochromatic


Wrist rest



No


Ergonomics



Cable length



1.8 m


Features



Cable length



1.8 m


Keyboard



Certification



cURus, VDE GS, c-tick, VCCI, CE, FCC


Connectivity technology



Wired


Device interface



USB


Fingerprint reader



No


Hot keys



Yes


Keyboard form factor



Full-size (100%)


Keyboard key switch



Membrane


Keyboard keys operating life



10 million characters


Keyboard language



German


Keyboard layout



QWERTZ


Keyboard number of keys



105


Number of hot keys



4


Numeric keypad



Yes


Pointing device



No


Purpose



PC/Server


Recommended usage



Office


Smart card reader



Yes


USB hub



Yes


Windows keys



Yes


Logistics data



Harmonized System (HS) code



84716060


Products per master (outer) case



56 pc(s)


Mouse



Mouse included



No


Operational conditions



Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 65 �C


Package dimensions



Depth (package,cm)



23.2 cm


Gross Weight (Package, kg)



1.5 kg


Height (package,cm)



5.5 cm


Width (package,cm)



47.2 cm


Packaging data



User guide



Yes


Power



Power consumption



100 mA


Power source type



USB


Product dimensions



Net Weight (Product, kg)



1 kg


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Y, Yes


Windows operating systems supported



Y, Yes


Technical details



Harmonized System (HS) code



84716060


Vendor information



Brand Name


Cherry


Warranty



1 Year(s)


Weight & dimensions



Keyboard dimensions (WxDxH)



458 x 188 x 46 mm


Keyboard weight



840 g
