Chieftec

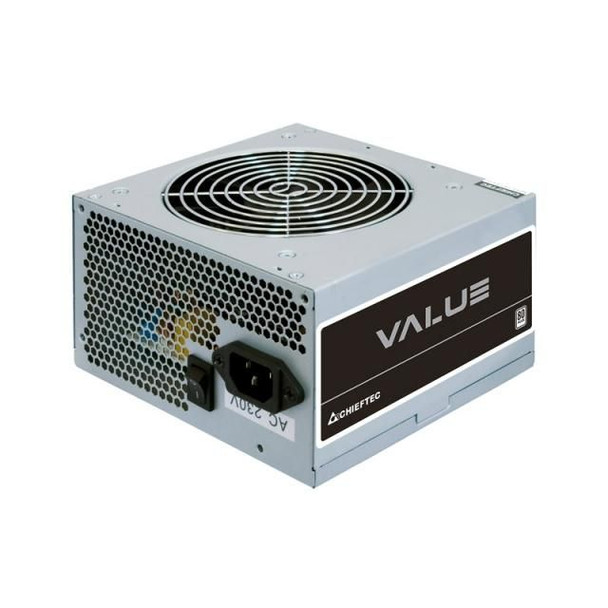

Chieftec APB-700B8 Es APB-700B8 Power Supply APB-700B8
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- APB-700B8
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The new VALUE SERIES offers both quality and 80 PLUS� 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, T�V and amongst many others, it�s the VALUE choice!
Design
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Product colour
Silver
Logistics data
Harmonized System (HS) code
84733020
Package dimensions
Gross Weight (Package, kg)
0.13 kg
Performance
80 PLUS certification
80 PLUS
ATX version
2.3
Certification
CE, CB, EAC, T�V
Power supply unit (PSU) form factor
ATX
Purpose
PC/Server
Ports & interfaces
CPU power cable length
50 cm
CPU power connector (4+4 pin)
Yes
EPS power connector (4+4 pin)
Yes
Floppy disk drive connector
Yes
Floppy drive power connector
1
Motherboard power cable length
55 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
PCI Express power cable length
50 cm
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power cable length
150, 500
Peripheral (Molex) power connectors (4-pin)
2
SATA power cable length
150, 550
Power
AC input frequency
47 - 63 Hz
AC input voltage
200 - 240 V
Combined power (+12V)
648 Watt
Combined power (+3.3V)
130 Watt
Combined power (+5V)
130 Watt
Input current
5 A
Max output current (+12V1)
54 A
Max output current (+3.3V)
22 A
Max output current (+5V)
22 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over voltage, Overheating, Overload, Short circuit, Under power, Under voltage
Total power
700 Watt
Product dimensions
Net Weight (Product, kg)
0.1 kg
Product Depth
14 cm
Product Height
8.7 cm
Product Width
15 cm
Technical details
Sustainability certificates
CE
Sustainability compliance
Yes
Vendor information
Brand Name
Chieftec
Warranty
1 Year(s)
View AllClose
Design
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Product colour
Silver
Logistics data
Harmonized System (HS) code
84733020
Package dimensions
Gross Weight (Package, kg)
0.13 kg
Performance
80 PLUS certification
80 PLUS
ATX version
2.3
Certification
CE, CB, EAC, T�V
Power supply unit (PSU) form factor
ATX
Purpose
PC/Server
Ports & interfaces
CPU power cable length
50 cm
CPU power connector (4+4 pin)
Yes
EPS power connector (4+4 pin)
Yes
Floppy disk drive connector
Yes
Floppy drive power connector
1
Motherboard power cable length
55 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
PCI Express power cable length
50 cm
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power cable length
150, 500
Peripheral (Molex) power connectors (4-pin)
2
SATA power cable length
150, 550
Power
AC input frequency
47 - 63 Hz
AC input voltage
200 - 240 V
Combined power (+12V)
648 Watt
Combined power (+3.3V)
130 Watt
Combined power (+5V)
130 Watt
Input current
5 A
Max output current (+12V1)
54 A
Max output current (+3.3V)
22 A
Max output current (+5V)
22 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over voltage, Overheating, Overload, Short circuit, Under power, Under voltage
Total power
700 Watt
Product dimensions
Net Weight (Product, kg)
0.1 kg
Product Depth
14 cm
Product Height
8.7 cm
Product Width
15 cm
Technical details
Sustainability certificates
CE
Sustainability compliance
Yes
Vendor information
Brand Name
Chieftec
Warranty
1 Year(s)
