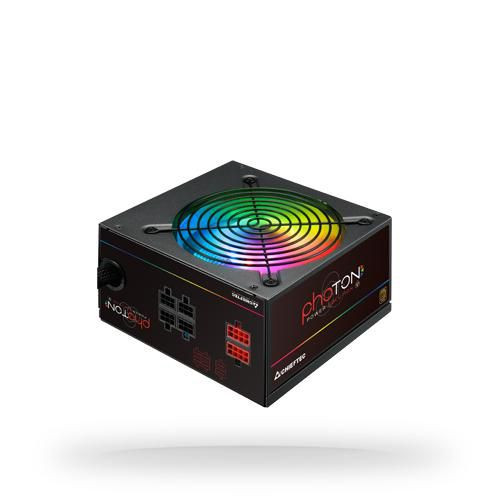

Chieftec CTG-650C-RGB Photon Power Supply Unit 650 CTG-650C-RGB

The highly innovative Photon series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS AURA SYNC, MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC and GIGABYTE RGB FUSION.

Photon series in addition provide a vast number of predefined and MB-independent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its modular cables and related vast amount of connectors, an efficiency of 85% @230V, coupled with its highly competitive price positioning, the models of the Photon series stand out as perfect RGB Gaming solutions.

Design



Cooling type



Active


Fan diameter



12 cm


Fan location



Top


Illumination



Yes


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Other features



Illumination colour



Blue, Green, Red


Package dimensions



Gross Weight (Package, kg)



2.78 kg


Performance



Power supply unit (PSU) form factor



PS/2


Purpose



PC


Supported motherboard form factors



ATX


Ports & interfaces



CPU power cable length



60 cm


CPU power connector (4+4 pin)



Yes


Floppy disk drive connector



Yes


Floppy drive power connector



2


Motherboard power connector



24-pin ATX


Number of SATA power connectors



6


PCI Express power cable length



55 cm


PCI Express power connectors (6+2 pin)



4


Peripheral (Molex) power cable length



150, 450


Peripheral (Molex) power connectors (4-pin)



4


SATA power cable length



150, 450


Power



AC input frequency



50 Hz


AC input voltage



230 V


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Combined power (+5Vsb)



12.5 Watt


Efficiency



85 %


Input current



6.3 A


Max output current (+12V1)



26 A


Max output current (+12V2)



26 A


Max output current (+3.3V)



22 A


Max output current (+5V)



22 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.3 A


Power protection features



Over voltage, Overload, Short circuit, Under voltage


Total power



650 Watt


Product dimensions



Net Weight (Product, kg)



2.14 kg


Product Depth



14 cm


Product Height



8.7 cm


Product Width



15 cm


Vendor information



Brand Name


Chieftec


Warranty



1 Year(s)
