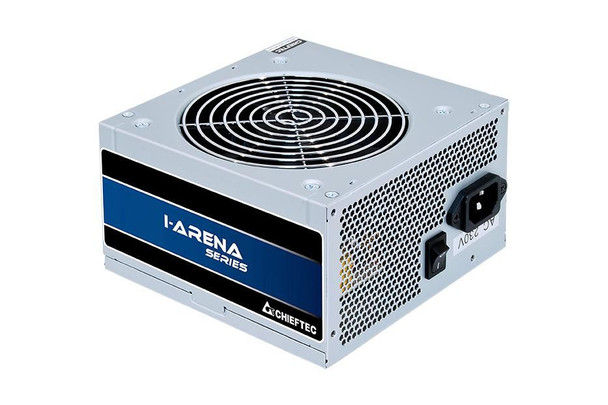

Chieftec GPB-450S Power Supply Unit 450 W 20+4 GPB-450S

High efficiency and a highly competitive pricing coupled with the latest �state-of-the-art� PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.

Design



Cooling type



Active


Fan diameter



12 cm


Fan location



Top


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Silver


Logistics data



Harmonized System (HS) code



84733020


Other features



Warranty card



Yes


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging data



Manual



Yes


Performance



ATX version



2.3


Power supply unit (PSU) form factor



PS/2


Purpose



PC


Ports & interfaces



Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



5


PCI Express power connectors (6+2 pin)



1


Peripheral (Molex) power connectors (4-pin)



3


Power



AC input frequency



47 - 63 Hz


AC input voltage



200 - 240 V


Combined power (+12V)



408 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



3.6 Watt


Efficiency



85 %


Input current



3.5 A


Max output current (+12V1)



34 A


Max output current (+3.3V)



17 A


Max output current (+5V)



16 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.3 A


Power factor



0.9


Power Factor Correction (PFC) type



Active


Power protection features



Over voltage, Overload, Short circuit, Under voltage


Total power



450 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



15 cm


Product Height



8.7 cm


Product Width



14 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Chieftec


Warranty



1 Year(s)
