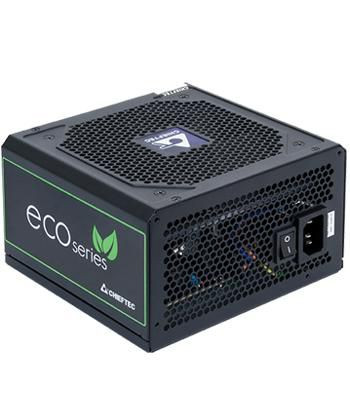

Chieftec GPE-700S ATX ECO GPE-700S

The name ECO stands for maximum efficiency, ecological values and a new era of power supplies. Compatible with all current standards and certified by T�V amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.

Design



Cooling type



Active


Fan diameter



12 cm


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Other features



Housing colour



Black


Performance



80 PLUS certification



80 PLUS Bronze


ATX version



2.3


Energy Star certified



Yes


Power supply unit (PSU) form factor



PS/2


Purpose



PC


RoHS compliance



Yes


Ports & interfaces



EPS power connector (8-pin)



Yes


Motherboard power cable length



40 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



6


PCI Express connector



Yes


PCI Express power connectors (6+2 pin)



1


Peripheral (Molex) power connectors (4-pin)



2


Power



AC input frequency



50 Hz


AC input voltage



230 V


Combined power (+12V)



630 Watt


Combined power (+3.3V)



130 Watt


Combined power (+5V)



130 Watt


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



3.6 Watt


Efficiency



85 %


Input current



6.3 A


Max output current (+12V1)



52.5 A


Max output current (+3.3V)



22 A


Max output current (+5V)



22 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.3 A


Power factor



0.9


Power Factor Correction (PFC) type



Active


Power protection features



Over voltage, Overload, Short circuit, Under voltage


Total power



700 Watt


Product dimensions



Product Depth



15 cm


Product Height



8.6 cm


Product Width



14 cm


Technical details



Sustainability certificates



RoHS, ENERGY STAR


Vendor information



Brand Name


Chieftec


Warranty



1 Year(s)
