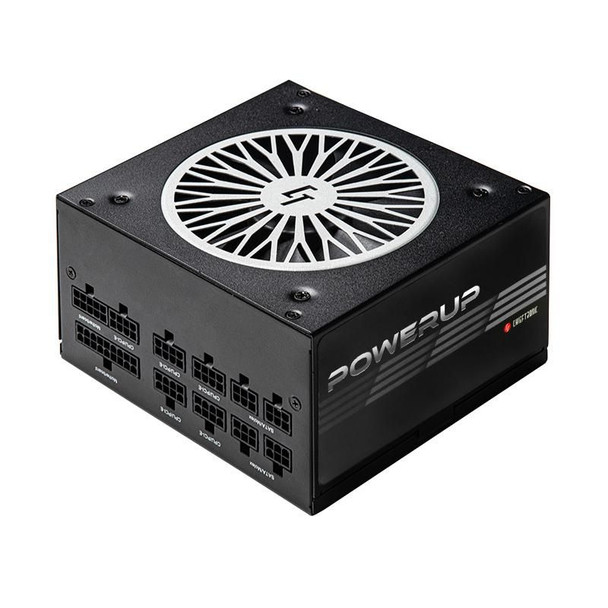

Chieftec GPX-550FC Chieftronic Powerup Power GPX-550FC

With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer�s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.

A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS� Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very large gaming cases.

Design



Cooling type



Active


Fan diameter



12 cm


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



2.8 kg


Performance



80 PLUS certification



80 PLUS Gold


ATX version



2.53


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



Cabling type



Modular


CPU power cable length



80 cm


CPU power connector (4+4 pin)



Yes


Floppy drive power connector



1


Motherboard power cable length



65 cm


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



6


PCI Express power cable length



50 cm


PCI Express power connectors (6+2 pin)



2


Peripheral (Molex) power cable length



500, 650, 800, 950


Peripheral (Molex) power connectors (4-pin)



3


SATA power cable length



500, 650, 800


Power



AC input frequency



47 - 63 Hz


AC input voltage



100 - 240 V


Combined power (-12V)



3.6 Watt


Combined power (+12V)



546 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Combined power (+5Vsb)



12.5 Watt


Input current



8 A


Max output current (-12V)



0.3 A


Max output current (+12V)



45.5 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



2.5 A


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage


Total power



550 Watt


Product dimensions



Net Weight (Product, kg)



2.15 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


Chieftec


Warranty



1 Year(s)
