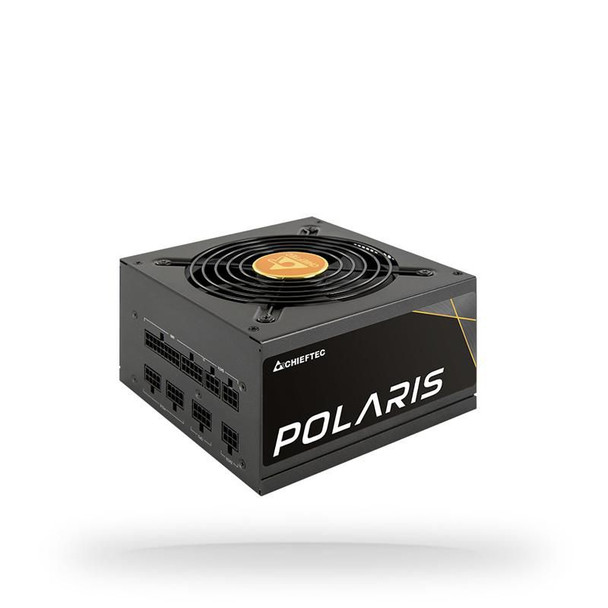

Chieftec PPS-750FC Polaris Power Supply Unit 750 PPS-750FC

The Polaris Series brings CHIEFTEC�s trusted and proven experience with high quality, 80 PLUS� Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU�s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.

With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.

Design



Cooling type



Active


Fan diameter



12 cm


Fan location



Top


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Gold


ATX version



2.4


Power supply unit (PSU) form factor



PS/2


Purpose



PC


Ports & interfaces



Cabling type



Modular


CPU power cable length



65 cm


CPU power connector (4+4 pin)



Yes


Floppy disk drive connector



Yes


Floppy drive power connector



1


Motherboard power cable length



65 cm


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



8


PCI Express power cable length



50 cm


PCI Express power connectors (6+2 pin)



4


Peripheral (Molex) power cable length



150, 450


Peripheral (Molex) power connectors (4-pin)



3


SATA power cable length



150, 450


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



750 Watt


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Input current



10 A


Max output current (+12V)



62.5 A


Max output current (+3.3V)



22 A


Max output current (+5V)



22 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage


Total power



750 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



14 cm


Product Height



8.7 cm


Product Width



15 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Chieftec


Warranty



1 Year(s)
