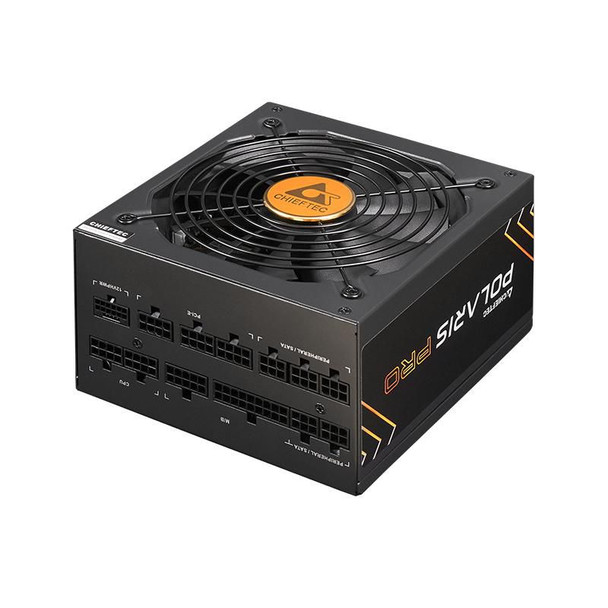

Chieftec PPX-1300FC-A3 Polaris Pro 1300W Power PPX-1300FC-A3

The CHIEFTEC Polaris Pro Series features advanced thermal control with the Zero RPM mode, enabling the optimal balance between silence at low power consumption and ideal cooling, with 80 PLUS� PLATINUM certified efficiency. Polaris Pro Series is designed for Intel�s state-of-the-art ATX 3.0 standard with native PCIe GEN5 connector. The Polaris Pro Series is built with 100% high-end Japanese capacitors to achieve unprecedented tight voltage regulation and lower ripple and noise to maximize your system performance and excellent durability. Fully modular cable management ensures a clean and convenient build inside any system.

Design



Cooling type



Active


Fan diameter



13.5 cm


Product colour



Black


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Platinum


ATX version



3.0


Bearing technology



FDB


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



Cabling type



Fully-Modular


EPS power connector (8-pin)



Yes


Floppy disk drive connector



Yes


Floppy drive power connector



1


Motherboard power cable length



60 cm


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



12


PCI Express power connectors (16-pin)



1


PCI Express power connectors (6+2 pin)



6


Peripheral (Molex) power cable length



150, 500


Peripheral (Molex) power connectors (4-pin)



4


SATA power cable length



100, 550


Power



AC input frequency



50/60 Hz


AC input voltage



100 - 240 V


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Input current



15-8 A


Max output current (+12V1)



108.3 A


Max output current (+3.3V)



24 A


Max output current (+5V)



24 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power factor



0.9


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Short circuit, Under voltage


Total power



1300 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



16 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Warranty period



5 year(s)


Vendor information



Brand Name


Chieftec


Warranty



1 Year(s)
