Chieftec

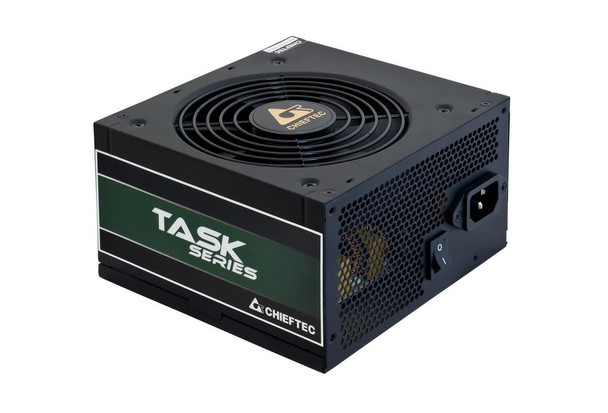

Chieftec TPS-700S Power Supply Unit 700 W 20+4 TPS-700S
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- TPS-700S
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
TPS-700S
The CHIEFTEC Task Series PSU�s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
Design
Fan diameter
12 cm
Number of fans
1 fan(s)
Product colour
Black
Logistics data
Harmonized System (HS) code
84733020
Other features
EPS cable length
65 cm
Package dimensions
Gross Weight (Package, kg)
2.26 kg
Performance
80 PLUS certification
80 PLUS Bronze
Certification
ErP, CE, CB, EAC, TUV
Power supply unit (PSU) form factor
PS/2
Purpose
PC
Supported motherboard form factors
ATX
Ports & interfaces
ATX power connector (20+4 pin)
Yes
EPS power connector (4+4 pin)
Yes
Motherboard power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
PCI Express power cable length
50 cm
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power cable length
150, 500
Peripheral (Molex) power connectors (4-pin)
3
SATA power cable length
150, 500
Power
AC input frequency
47 - 63 Hz
AC input voltage
100 - 240 V
Combined power (+12V)
648 Watt
Combined power (+5Vsb)
12.5 Watt
Combined power (-12V)
3.6 Watt
Input current
10 A
Max output current (+12V)
54 A
Max output current (+3.3V)
19 A
Max output current (+5V)
17 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.3 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over voltage, Overheating, Overload, Short circuit, Under voltage
Total power
700 Watt
Product dimensions
Net Weight (Product, kg)
1.74 kg
Product Depth
14 cm
Product Height
8.7 cm
Product Width
15 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Chieftec
Warranty
1 Year(s)
View AllClose
The CHIEFTEC Task Series PSU�s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
Design
Fan diameter
12 cm
Number of fans
1 fan(s)
Product colour
Black
Logistics data
Harmonized System (HS) code
84733020
Other features
EPS cable length
65 cm
Package dimensions
Gross Weight (Package, kg)
2.26 kg
Performance
80 PLUS certification
80 PLUS Bronze
Certification
ErP, CE, CB, EAC, TUV
Power supply unit (PSU) form factor
PS/2
Purpose
PC
Supported motherboard form factors
ATX
Ports & interfaces
ATX power connector (20+4 pin)
Yes
EPS power connector (4+4 pin)
Yes
Motherboard power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
PCI Express power cable length
50 cm
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power cable length
150, 500
Peripheral (Molex) power connectors (4-pin)
3
SATA power cable length
150, 500
Power
AC input frequency
47 - 63 Hz
AC input voltage
100 - 240 V
Combined power (+12V)
648 Watt
Combined power (+5Vsb)
12.5 Watt
Combined power (-12V)
3.6 Watt
Input current
10 A
Max output current (+12V)
54 A
Max output current (+3.3V)
19 A
Max output current (+5V)
17 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.3 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over voltage, Overheating, Overload, Short circuit, Under voltage
Total power
700 Watt
Product dimensions
Net Weight (Product, kg)
1.74 kg
Product Depth
14 cm
Product Height
8.7 cm
Product Width
15 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Chieftec
Warranty
1 Year(s)
