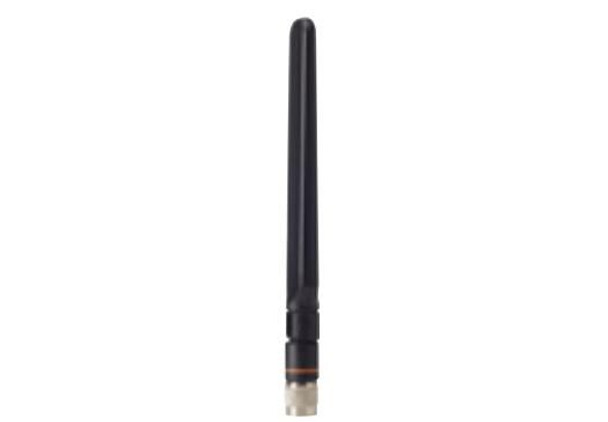

Cisco AIR-ANT2524DB-R= 2.4 GHZ 2DBI/5 GHZ 4 DBI DIPOL AIR-ANT2524DB-R=

Dual-Band Antennas
The Cisco Aironet high-performance, dual-band dipole antenna. The antenna operates in both the 2.4-GHz and 5-GHz frequency bands and is designed for use with Cisco Aironet 2.4-GHz and 5-GHz radio products that have dual-band reverse-polarity TNC (RP-TNC) antenna ports. The antenna has a nominal gain of 2 dBi in the 2.4-GHz frequency band and 4 dBi in the 5-GHz frequency band.

Features



Antenna connector type



RP-TNC


Antenna type



Omni-directional antenna


Connector gender



Male


Product colour



Black


Purpose



Indoor


Voltage Standing Wave Ratio (VSWR)



2:1


Operational conditions



Operating temperature (T-T)



-20 - 60 �C


Storage temperature (T-T)



-40 - 85 �C


Other features



Frequency range



2.4 - 2.5GHz, 5.15 - 5.85GHz


Package dimensions



Gross Weight (Package, kg)



0.01 kg


Performance



Antenna gain (2.4 GHz)



2 dBi


Antenna gain (5 GHz)



4 dBi


Antenna gain level (max)



4 dBi


Frequency band



2.4/5 GHz


Horizontal beam width (2.4 GHz)



63 �


Horizontal beam width (5 GHz)



39 �


Impedance



50 ?


Product dimensions



Net Weight (Product, kg)



0.009000000000000001 kg


Product Depth



16.85 cm


Product Width



2.1 cm


Technical details



Harmonized System (HS) code



85177100


Vendor information



Brand Name


Cisco


Warranty



3 Month(s)
